Honeywell

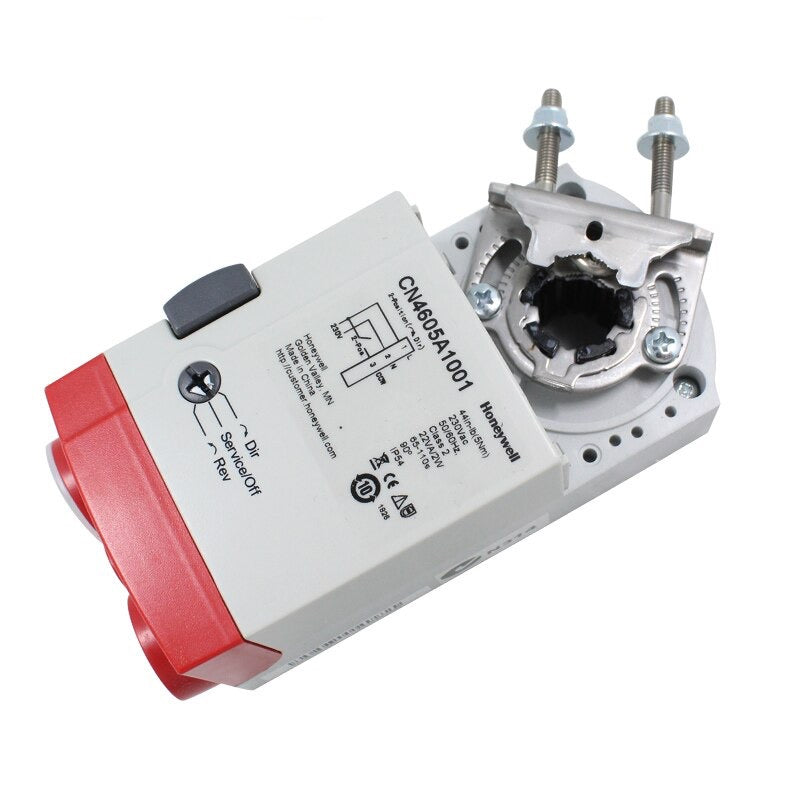

Non-Spring Return Damper Actuator, 5 Nm, 230VAC, White/Red

Non-Spring Return Damper Actuator, 5 Nm, 230VAC, White/Red

CN4605A1001

In stock

RM522.00
RM522.00
Sold out
Shipping calculated at checkout.

Control Type: On/Off

Type
Torque
Voltage AC/DC
This non-spring return direct-coupled damper actuator provides floating and two-position control for air dampers, VAV units, air handles, ventilation flaps, louvers and reliable control for air damper applications with up to 10 sq. ft / 44 lb-in. (5 Nm) (seal- less damper blades; air friction-dependent).
  • Declutch for manual adjustment
  • Adjustable mechanical end limits
  • Removable access cover for direct wiring
  • Mountable in any orientation
  • Rotation direction and service/OFF switch
  • Self-centering shaft adapter



Specification:

ITEM NAME:

Damper Actuator

MODEL:

CN4605A1001

MANUFACTURER:

Honeywell

COLOR:

White and Red

INGRESS PROTECTION (IP RATING):

IP54

FREQUENCY:

50Hz

RUN TIME:

65-110 sec

OPERATING AMBIENT TEMPERATURE (DEGREE CELSIUS):

20 to +60 Deg.C

VOLTAGE:

230VAC

POWER CONSUMPTION:

2W

NOISE LEVEL:

35dB

BRAND ORIGIN (NOT MANUFACTURE):

Germany

STANDARDS:

EN60730-1

CERTIFICATION:

CE

DELIVERY TIME:

2-7 Days

UNIT:

Piece



Documentations:

Technical data sheet - CN4605A1001
