Honeywell

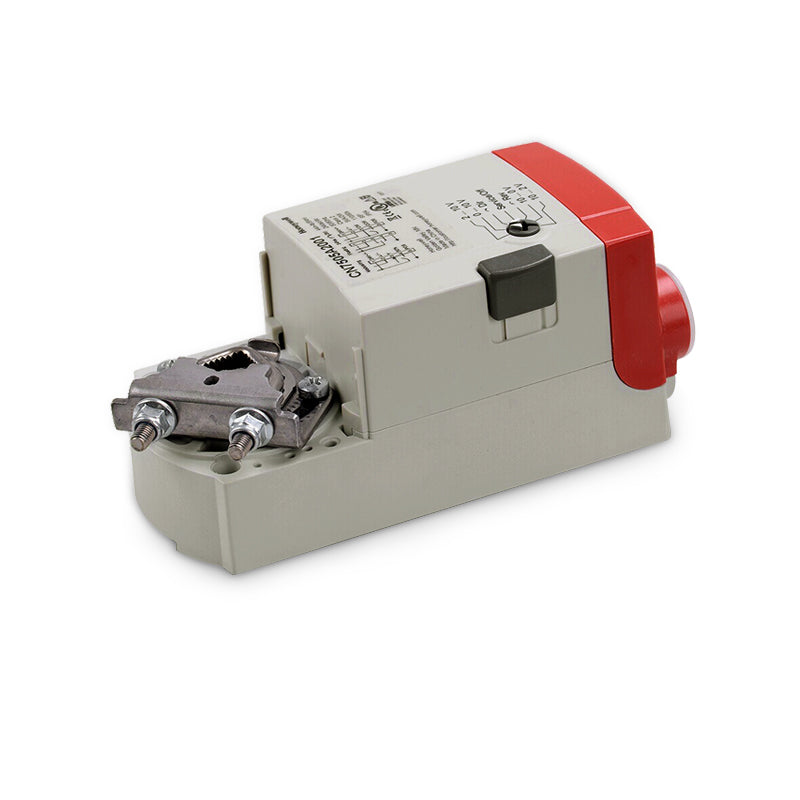

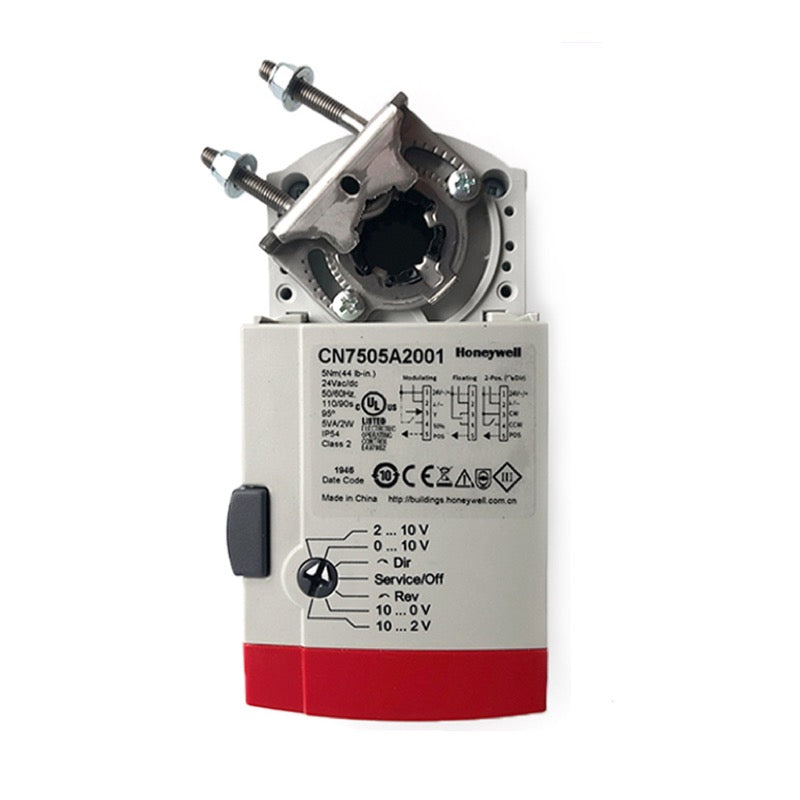

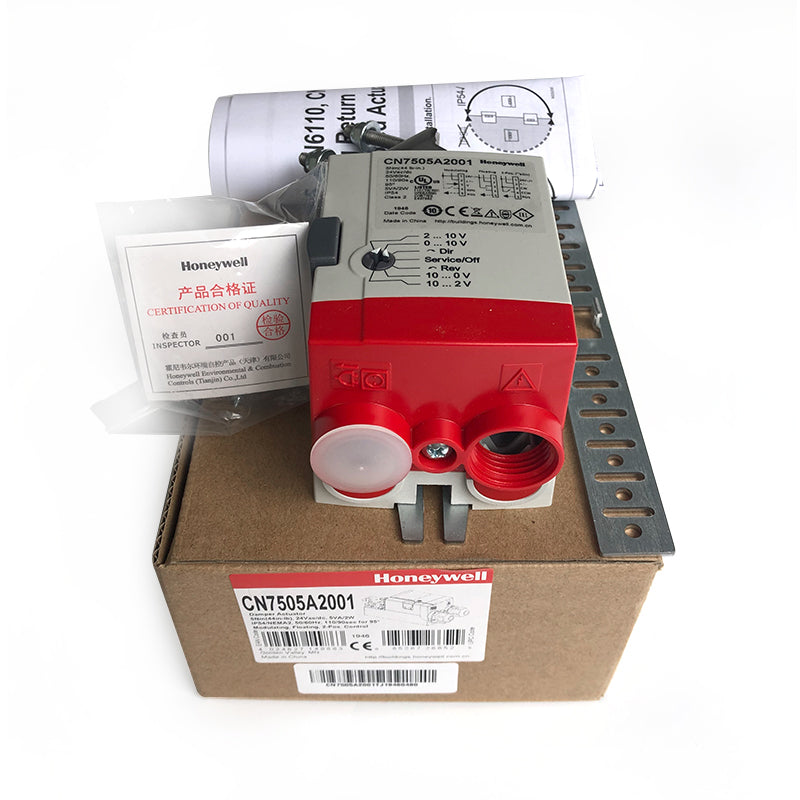

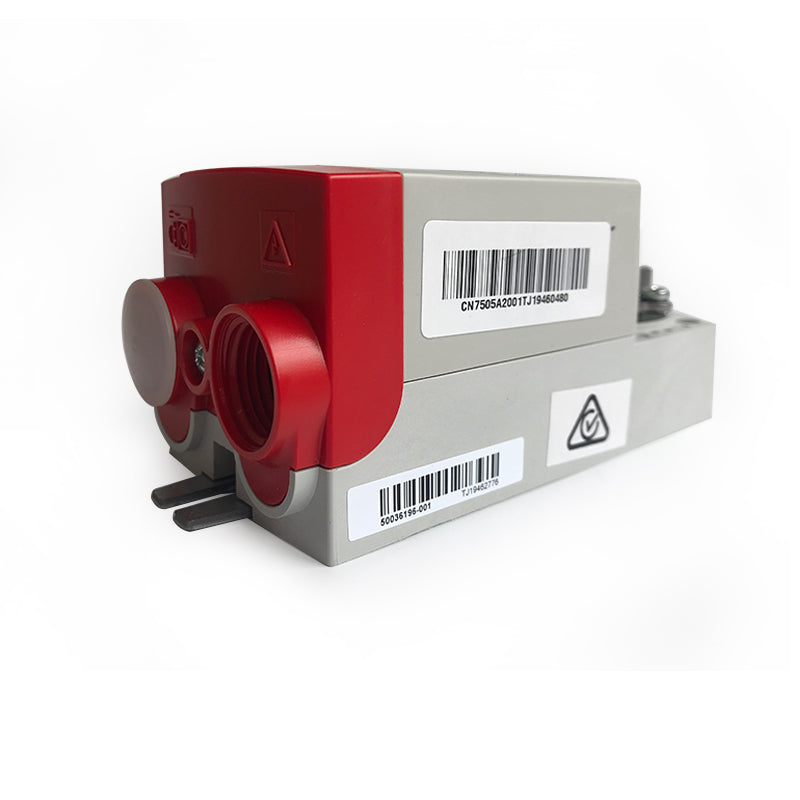

Non-Spring Return Damper Actuator, 5 Nm, 24VAC, White/Red

Non-Spring Return Damper Actuator, 5 Nm, 24VAC, White/Red

CN7505A2001

In stock

RM754.00
RM754.00
Sold out
Shipping calculated at checkout.

Control Type: Modulating (Electrical)

Type
Torque
Voltage AC/DC
This non-spring return direct-coupled damper actuator provides floating and two-position control for air dampers, VAV units, air handles, ventilation flaps, louvers and reliable control for air damper applications with up to 10 sq. ft / 44 lb-in. (5 Nm) (seal- less damper blades; air friction-dependent).
  • Declutch for manual adjustment
  • Adjustable mechanical end limits
  • Removable access cover for direct wiring
  • Mountable in any orientation
  • Rotation direction and service/OFF switch

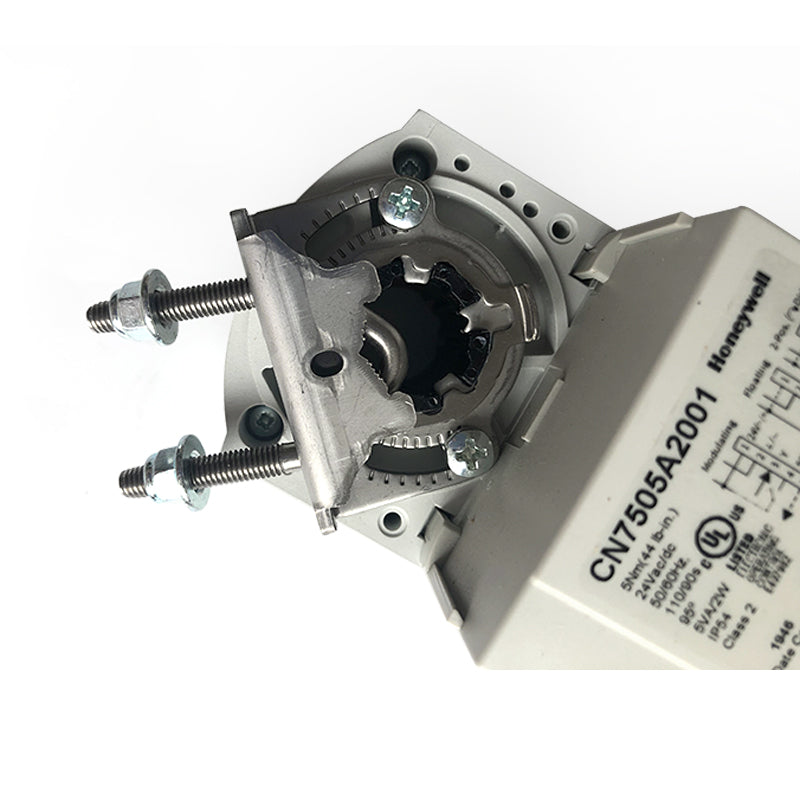

  • Shaft mounting: for round shafts 8..16 mm; square shafts 6..13 mm



Specifications

ITEM NAME:

Damper Actuator

MODEL:

CN7505A2001

MANUFACTURER:

Honeywell

COLOR:

White and Red

INGRESS PROTECTION (IP RATING):

IP54

FREQUENCY:

50/60Hz

RUN TIME:

95 sec

OPERATING AMBIENT TEMPERATURE (DEGREE CELSIUS):

20 to +60 Deg.C

VOLTAGE:

24VAC

POWER CONSUMPTION:

2W

NOISE LEVEL:

35dB

BRAND ORIGIN (NOT MANUFACTURE):

Germany

STANDARDS:

EN60730-1

CERTIFICATION:

2937,759

DELIVERY TIME:

2-7 Days

UNIT:

Piece



Documentations:

Technical data sheet - CN7505A2001
