Vector Controls

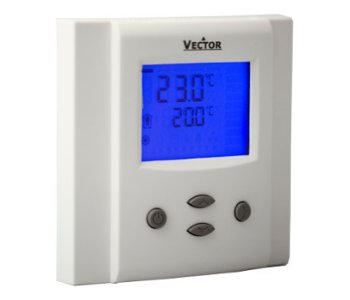

Compact universal single or dual loop PI-controllers for wall mounting with 1 relays, 2 analog outputs and 2 inputs.

Compact universal single or dual loop PI-controllers for wall mounting with 1 relays, 2 analog outputs and 2 inputs.

TCI-W23

Low stock: 10 left

RM1,950.00
RM1,950.00
Sold out
Shipping calculated at checkout.

Voltage AC/DC
Communication

The TCI-W is a universal single or dual loop controller with PI- and binary sequences for wall mounting.

 Applications

  • Fan coil units
  • Heat exchangers
  • Zoning
  • VAV
  • Air handlers
  • Fan, pump control
  • Humidifiers / Dehumidifiers
  • Ventilation
  • Radiant heating/cooling
  • Pressurization



    Features Specifications:

    • Universal PID and/or binary control for any analog input/output signal and range
    • Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation.
    • Differential, averaging, min. and max. functions
    • Cascading of control loops (-W23)
    • Alarm monitoring of low and high limits on all inputs
    • Programmable reaction in case of alarm
    • Feedback function for inputs and set points
    • Functions for dehumidifying, set point shift, cascade control
    • Password-protected programmable user and control parameters

    Deluxe version

    • Power cap protected real-time clock with 48hr power backup
    • 7-day programmable schedules, with options including change of set points and direct position of manual outputs
    • Blue backlight



     Item name    Item code    Description
       TCI-W23  40-100172 Deluxe version, 2 loops, PI-controller, wall flush mounted,
    int. TI, 1 UI, 1 TI, 2 AO, 1 DO (relays)


    Documentations:

    Operation Manual

    Install Sheet
