Honeywell

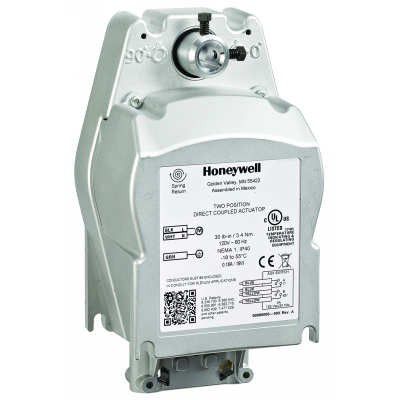

Fire and Smoke Actuator, Spring Return, 80 lb-in, 230 Vac, 2-position (SPST), 2x Aux Switch

Fire and Smoke Actuator, Spring Return, 80 lb-in, 230 Vac, 2-position (SPST), 2x Aux Switch

SKU:MS4609F1210

In stock

Regular price RM1,196.00
Regular price Sale price RM1,196.00
Sold out
Shipping calculated at checkout.

Control Type: On/Off

Type
Torque
Voltage AC/DC

Honeywell's Fast-Acting, Two-Position Actuators are line volt (230 V), 80 lb-in, spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (CW) or counterclockwise (CCW) spring rotation.

Damper Actuator, 230 VAC, 80 in-lb, Motor Timing: 15 sec at 60 Hz, Direct Coupled Mount, Aluminum, 8.9 in H x 5.13 in W x 3.32 in D, Import



Features

  • (2) Integral 3/8 in clip-in flexible conduit connections
  • 50/60 Hz frequency
  • 32 in color-coded leads electrical connections
  • 5 to 95% RH operating humidity, non-condensing
  • 0.13 A, 23 W driving, 0.09 A, 7 W holding power consumption
  • -40 to 140 deg F shipping and storage temperature
  • 0 to 130 deg F ambient temperature
  • Switch ratings: 125 VAC/24 VDC, 3A resistive
  • Environmental, electrical or ingress protection rating: NEMA 1, IP40
  • (2) Internal auxiliary switch
  • Maximum noise rating: Driving - 80 dB(A) at 1 m, holding - 20 dB(A) at 1 m (no audible noise)
  • 95+/-3 deg stroke
  • 1/2 in round shaft
  • Control signal: 2-position, SPST
  • Additional torque ratings: Maximum stall - 240 lb-in, minimum driving at 350 deg F - 80 lb-in
  • Spring return timing: 15 sec
  • Aluminum hub, (2) set screws shaft adapter
  • 13 mm round shaft
  • Spring return direction: By orientation
  • Fail safe mode: Spring return


Specifications

Dimensions

8.9 in H x 5.13 in W x 3.32 in D

Domestic / Import

Import

Manufacturer

Honeywell

Manufacturer #

MS4609F1210/U

Material

Aluminum

Motor Timing

15 sec at 60 Hz

Mounting Type

Direct Coupled

Torque Rating

80 lb-in

Voltage Rating

230



Documentations:

Technical data sheet - MS4609F1210
