Belimo

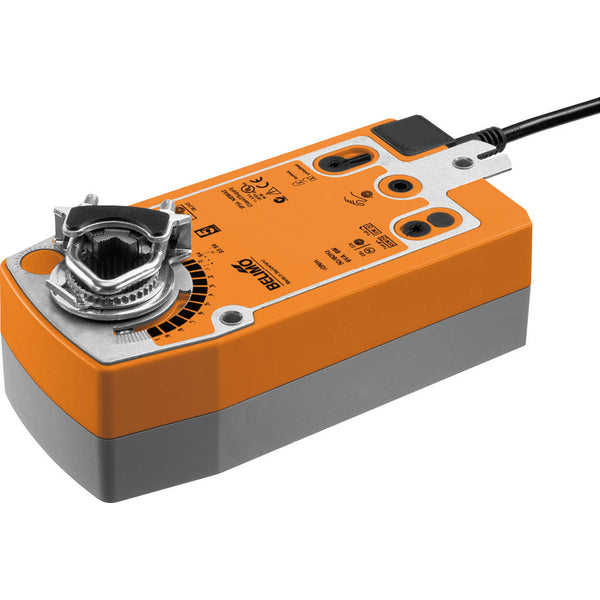

Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP54

Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP54

SKU:SFA

In stock

Regular price RM1,830.00
Regular price Sale price RM1,830.00
Sold out
Shipping calculated at checkout.

Control Type: On/Off

Type
Torque
Voltage AC/DC

Specifications:

Angle of rotation 95
Control type Open/close
Degree of protection IP54
Direction of rotation (fail-safe) Selectable by mounting L/R
Electrical connection Cable
Fail-safe function Fail-safe
Manual override By means of hand crank and locking switch
Mechanical interface Universal shaft clamp 10...25.4 mm
Power consumption (holding) 3.5 W
Power consumption (running) 7 W
Running time (fail-safe) <20 s
Running time (motor) 75 s / 90°
Torque 20 Nm
Voltage AC/DC AC 24...240 V / DC 24...125 V



Documentation:

Technical data sheet – SFA

Installation instructions - NF..A(-S2) / SF..A(-S2)

EU Declaration of Conformity - SFA
