Electromotoric actuators for the operation of Siemens Combi valves, types VPF43../53.. and VPF44../VPF54.. with 20/40 mm stroke as control valves in ventilation, air conditioning, district heating and cooling systems. With manual adjuster and position indicator, status indication per LED and with selectable positioning time (20 mm: 40, 60, 90 or 120 s, 40 mm: 80, 120, 180 or 240 s). Optional functions with auxiliary switches, potentiometer and AC 230 V power module.
1
/
of
1
Siemens

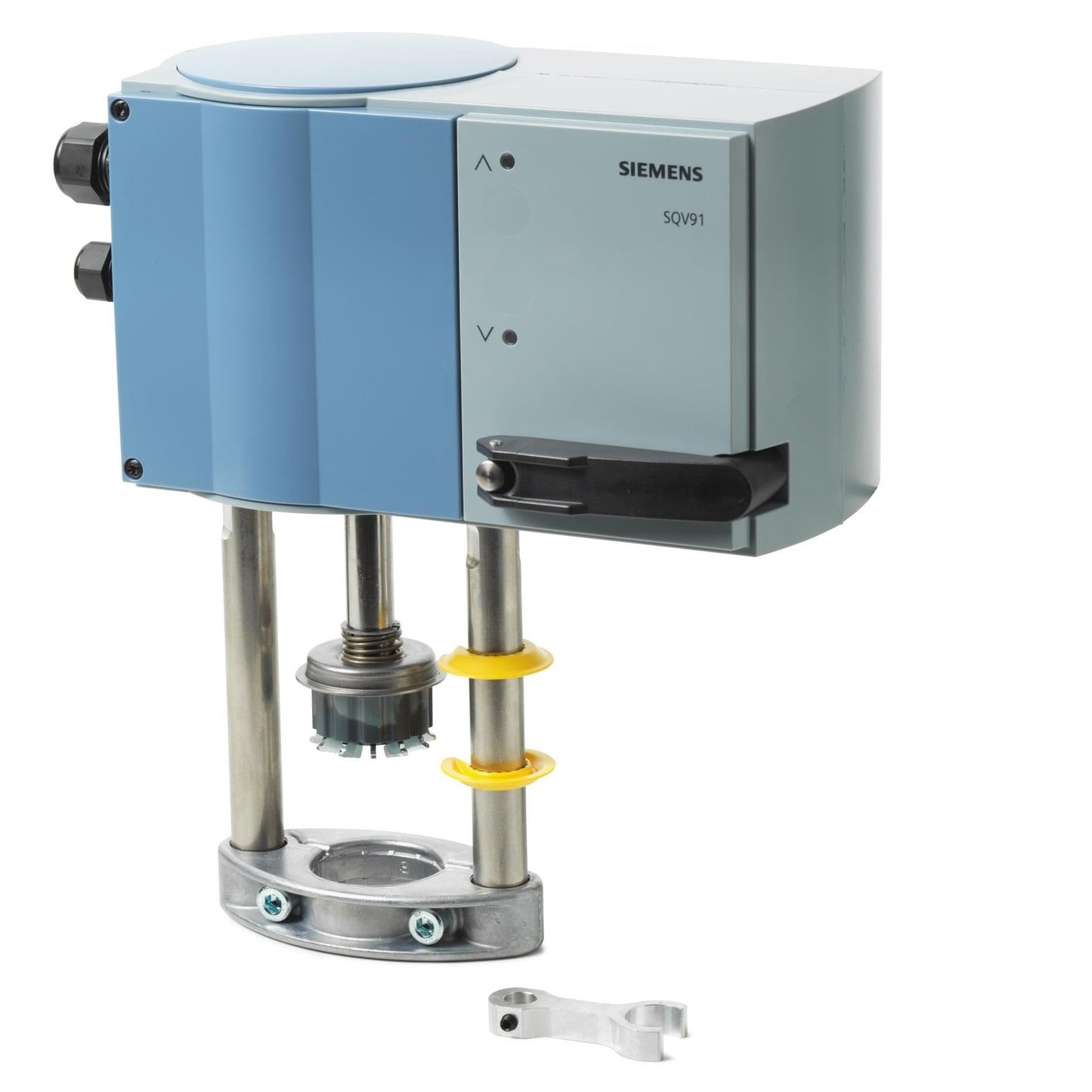

SQV91P40 Electromotoric actuator, 1100 N, 20/40 mm, AC/DC 24 V, 3P / DC 0…10 V / DC 4…20 mA, spring return function, extended, 120 s
SQV91P40 Electromotoric actuator, 1100 N, 20/40 mm, AC/DC 24 V, 3P / DC 0…10 V / DC 4…20 mA, spring return function, extended, 120 s
SKU:SQV91P40
Low stock: 5 left
Regular price
RM6,764.00
Regular price
Sale price
RM6,764.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: Modulating (Electrical)
Couldn't load pickup availability
Additional info
Actuators SQV..P.. are UL-listed
Technical Specifications:
| Positioning force |
1100 N
|
|
Stroke
|
20 mm, 40 mm, 43 mm
|
|
Nominal stroke
|
40 mm
|
|
Power consumption
|
20 VA, 10 W
|
|
Positioning time
|
40 s
|
| Positioning signal | 3-position , DC 0…10 V, DC 4…20 mA |
|
Spring return function
|
Yes (30 s) , Stem extended
|
|
Degree of protection
|
IP66
|
|
Ambient temperature, operation
|
0…55 °C
|
|
Medium temperature
|
1…120 °C
|
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 289 x 230 x 149 mm |
|
Mounting position
|
Upright to 90°, horizontal
|
|
Operating voltage
|
AC 24 V, DC 24 V
|
|
Position feedback
|
DC 0…10 V
|
|
Auxiliary switch
|
Optional
|
