Siemens

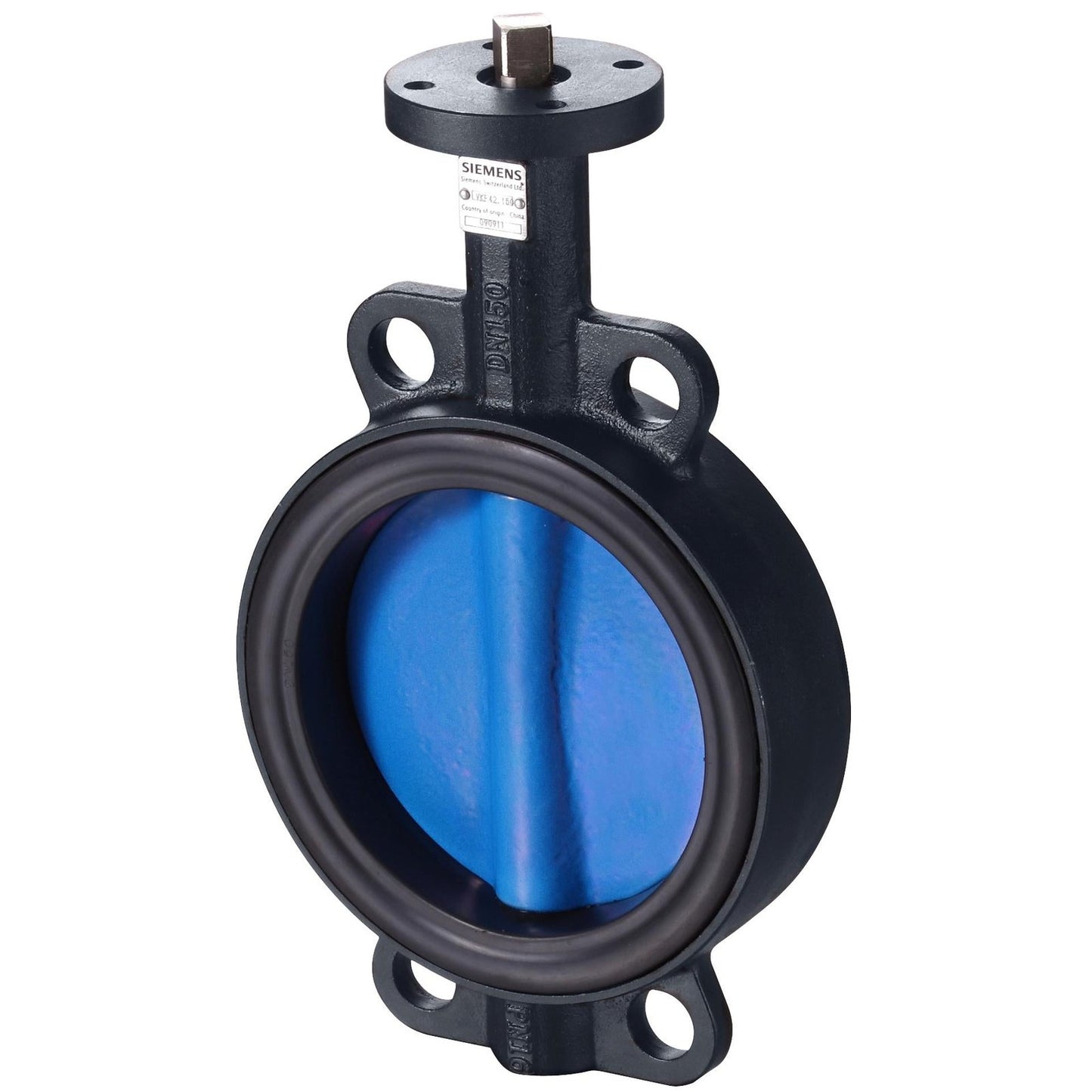

VKF42.450 Butterfly valves PN16 for flanged connections, with tight shutoff

VKF42.450 Butterfly valves PN16 for flanged connections, with tight shutoff

SKU:VKF42.450

Low stock: 5 left

Regular price RM20,044.00
Regular price Sale price RM20,044.00
Sold out
Shipping calculated at checkout.

Nominal Flow
Connection Size



Butterfly valve is used as motorized or shut-off valves in heating, ventilation and air conditioning systems applications.
  • In open and closed circuits
  • For 2-position (SPDT) or DC 0…10 V control signals
  • For chiller and cooling tower sequencing circuits
  • To open or close the flow to a heat exchanger or to complete plant sections



Technical Specifications:

Angular rotation
90°
Leakage rate
A to ISO 5208 (tight-closing)
DN
450
kvs
18500 m³/h
Medium
Water , Water with anti-freeze
Medium temperature
-10…80 °C
Valve characteristic
Non-linear
Permissible operating pressure
1600 kPa
Material, valve body
Cast iron
Material, inside set
Stainless steel , Nodular cast iron EN-GJS-450-10 (QT450-10) , Nylon coating
PN class
PN 16
Mounting position
Upright to horizontal
Required mounting set
Direct
SQL321B1400/SQL361B1400
700 kPa
