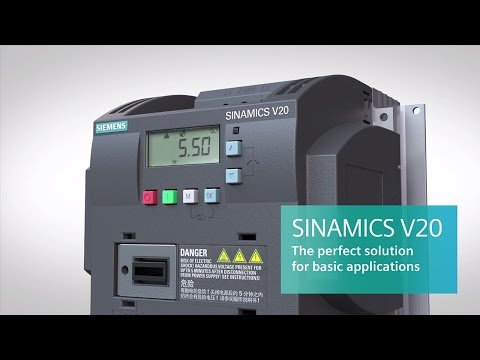

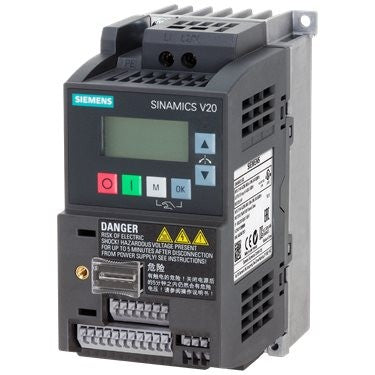

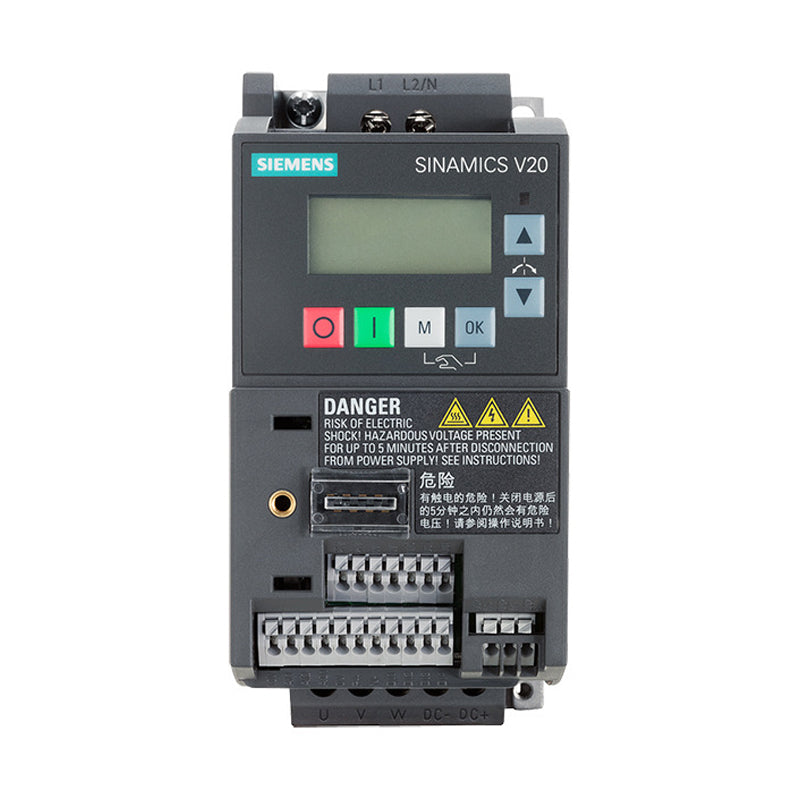

SINAMICS V20, Single Phase

The compact SINAMICS V20 is the frequency converter for simple motion sequences. It is characterized by its short commissioning times, easy handling, and energy-saving functions. The converter with its nine sizes covers the power range from 0.12 kW to 30 kW.

Simple.

• Simple installation - push-through and wall mounting - side-by-side possible for both versions
• Simple commissioning, diagnostics, and service via mobile and local operator panels, as well as a multitude of options
• Easy handling - Parameter readout and cloning without power supply

Rugged.

• Greater voltage range, advanced cooling, and coated electronics boards add to the robustness of the converter in tough environmental conditions
• Stable operation under difficult line supply conditions
• Operating and ambient temperature from -10 °C to 60 °C

Efficient.

• ECO mode for U/f, U2/f; hibernation mode in idle state
• Integrated energy and water flow monitoring
• High overload capacity (HO) and low overload capacity (LO) for frame size FSE

SINAMICS V20 meets the requirements of digitalization

Whether in the processing or manufacturing industry: drives make it happen. And drive systems are the perfect place to start when it comes to digitalization. Data from low-voltage motors and low-voltage converters is crucial in ensuring your competitiveness.

SINAMICS CONNECT 300 IoT gateway provides a simple plug&play solution to connect SINAMICS low-voltage converters directly to the cloud. It links a SINAMICS V20 to MindSphere without requiring any hardware or software changes – and up to 8 drives can be simultaneously connected.

Digitalization solutions for low-voltage converters​

Documentations:

• SINAMICS Low Voltage Converters Overview

• From MICROMASTER over to SINAMICS

• SINAMICS low-voltage converters. Selection and ordering guide
• Technical overview
• Technical Data
• Manuals / Operating instructions
