Vector Controls

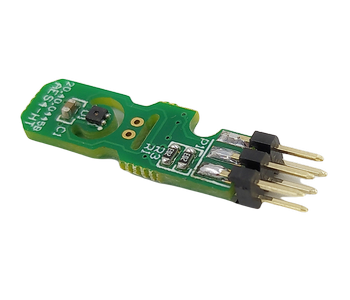

AES4-HTx RH+Temperature Sensor

AES4-HTx RH+Temperature Sensor

AES3-HTk6-A3

Low stock: 5 left

RM160.00
RM160.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)


For indoor, outdoor and duct humidity/temperature transmitters with additional passive temperature element

Humidity / temperature element for indoor, duct and outdoor transmitters (SRC-, SDC-, and SOC-series) with active humidity transmitter and passive temperature sensor function.

AES4-HT-A3 comparison of typical and maximal relative humidity accuracy at 25°C.

 Features Specifications:

          • Active Humidity/Temperature sensor element with 3 different accuracy levels and passive temperature resistor

          AES4-HTn - Humidity & Temperature & passive NTC Temperature Element

          Product Name  Product No.  Probe Type  Description
          AES4-HTn18-A2 40-500164-2 2 % RH accuracy & NTC 1.8kΩ at 25 ºC B25/50 3470
          AES4-HTn18-A3 40-500164-3 3 % RH accuracy & NTC 1.8kΩ at 25 ºC
          AES4-HTn18-A5 40-500164-5 5 % RH accuracy & NTC 1.8kΩ at 25 ºC
          AES4-HTn3-A2 40-500160-2 2 % RH accuracy & NTC 3kΩ at 25 ºC B25/50 3935
          AES4-HTn3-A3 40-500160-3 3 % RH accuracy & NTC 3kΩ at 25 ºC
          AES4-HTn3-A5 40-500160-5 5 % RH accuracy & NTC 3kΩ at 25 ºC
          AES4-HTn10-A2 40-500145-2 2 % RH accuracy & NTC 10kΩ at 25 ºC B25/50 3935
          AES4-HTn10-A3 40-500145-3 3 % RH accuracy & NTC 10kΩ at 25 ºC
          AES4-HTn10-A5 40-500145-5 5 % RH accuracy & NTC 10kΩ at 25 ºC
          AES4-HTn11-A2 40-500161-2 2 % RH accuracy & NTC 10kΩ at 25 ºC B25/50 3630
          AES4-HTn11-A3 40-500161-3 3 % RH accuracy & NTC 10kΩ at 25 ºC
          AES4-HTn11-A5 40-500161-5 5 % RH accuracy & NTC 10kΩ at 25 ºC
          AES4-HTn12-A2 40-500169-2 2 % RH accuracy & NTC 10kΩ at 25 ºC B25/50 3380
          AES4-HTn12-A3 40-500169-3 3 % RH accuracy & NTC 10kΩ at 25 ºC
          AES4-HTn12-A5 40-500169-5 5 % RH accuracy & NTC 10kΩ at 25 ºC
          AES4-HTn20-A2 40-500162-2 2 % RH accuracy & NTC 20kΩ at 25 ºC B25/50 4200
          AES4-HTn20-A3 40-500162-3 3 % RH accuracy & NTC 20kΩ at 25 ºC
          AES4-HTn20-A5 40-500162-5 5 % RH accuracy & NTC 20kΩ at 25 ºC
          AES4-HTn100-A2 40-500163-2 2 % RH accuracy & NTC 100kΩ at 25 ºC B25/50 4200
          AES4-HTn100-A3 40-500163-3 3 % RH accuracy & NTC 100kΩ at 25 ºC
          AES4-HTn100-A5 40-500163-5 5 % RH accuracy & NTC 100kΩ at 25 ºC



          AES4-HTp - Humidity & Temperature & passive PT100/1000 Temperature Element

           Product Name  Product No.  Probe Type  Description
          AES4-HTp1-A2 40-500165-2 2 % RH accuracy & PT100, 100Ω at 0 ºC EN60751
          AES4-HTp1-A3 40-500165-3 3 % RH accuracy & PT100, 100Ω at 0 ºC
          AES4-HTp1-A5 40-500165-5 5 % RH accuracy & PT100, 100Ω at 0 ºC
          AES4-HTp2-A2 40-500166-2 2 % RH accuracy & PT1000, 1kΩ at 0 ºC EN60751
          AES4-HTp2-A3 40-500166-3 3 % RH accuracy & PT1000, 1kΩ at 0 ºC
          AES4-HTp2-A5 40-500166-5 5 % RH accuracy & PT1000, 1kΩ at 0 ºC



          AES4-HTk - Humidity & Temperature & passive NI1000 Temperature Element

          Product Name Product No. Probe Type Description
          AES4-HTk5-A2 40-500167-2 2 % RH accuracy & NI1000, 1kΩ at 0 ºC, 5000 ppm/K  DIN 43760
          AES4-HTk5-A3 40-500167-3 3 % RH accuracy & NI1000, 1kΩ at 0 ºC, 5000 ppm/K
          AES4-HTk5-A5 40-500167-5 5 % RH accuracy & NI1000, 1kΩ at 0 ºC, 5000 ppm/K
          AES4-HTk6-A2 40-500168-2 2 % RH accuracy & NI1000, 1kΩ at 0 ºC, 6180 ppm/K  DIN 43760
          AES4-HTk6-A3 40-500168-3 3 % RH accuracy & NI1000, 1kΩ at 0 ºC, 6180 ppm/K
          AES4-HTk6-A5 40-500168-5 5 % RH accuracy & NI1000, 1kΩ at 0 ºC, 6180 ppm/K
