Belimo

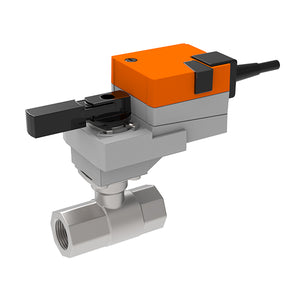

Characterised control valve, 2-way, DN 32, Internal thread, Rp 1 1/4", PN 25, ps 1600 kPa, kvs 20 m³/h, Fluid temperature -10...120°C

Characterised control valve, 2-way, DN 32, Internal thread, Rp 1 1/4", PN 25, ps 1600 kPa, kvs 20 m³/h, Fluid temperature -10...120°C

R2032-20-S2+LR24A-SR

Low stock: 7 left

RM1,723.00
RM1,723.00
Sold out
Shipping calculated at checkout.

Control Type: Modulating (Electrical)
  • Characterised control valve
  • 2-way, DN 32, Internal thread
  • Rp 1 1/4", PN 25, ps 1600 kPa, kvs 20 m³/h
  • Fluid temperature -10...120°C
  • Rotary actuator, 5 Nm, AC/DC 24 V, 2...10 V, 90 s, IP54
  • Actuator fitted

Valve specifications

Close-off pressure 1400 kPa
Fluid Cold and warm water, water with glycol up to max. 50% vol
Kvs
 20 m³/h
Pattern
 2-way
Pipe connection Internal thread
PN
 25
Pressure-independent No



Actuator specifications

Control type DC 2...10 V
Degree of protection IP54
Electrical connection Cable
Fail-safe function Non fail-safe
Manual override With push-button, can be locked
Power consumption (holding) 0.4 W
Power consumption (running) 1.5 W
Running time (motor) 90 s / 90°
Torque 5 Nm
Voltage AC/DC AC/DC 24 V



Documentations:

Technical data sheet – R2..xx-S.. [AP]

Technical data sheet – LR24A-SR

Installation instructions - R2 / 3..-S.. AP

Installation instructions - TR..A / LR..A / NR..A / SR..A
