Siemens

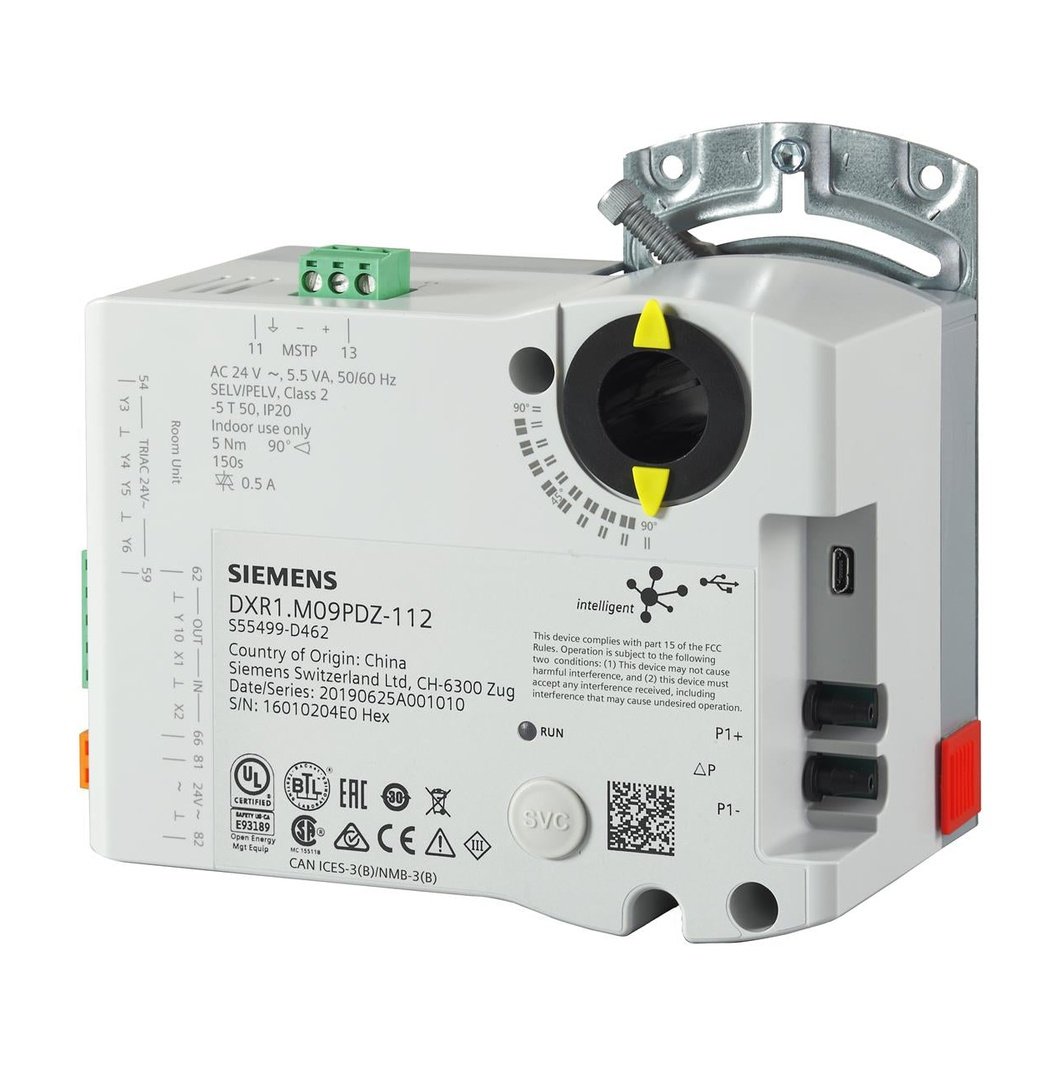

DXR1.M09PDZ-112 Compact, configurable room automation station and actuator combination, BACnet/MSTP, 5 Nm, 24 V, 2 UI, 1 AO, 4 triac, pressure sensor, VAV044

DXR1.M09PDZ-112 Compact, configurable room automation station and actuator combination, BACnet/MSTP, 5 Nm, 24 V, 2 UI, 1 AO, 4 triac, pressure sensor, VAV044

DXR1.M09PDZ-112

40 in stock

RM1,500.00
RM1,500.00
Sold out
Shipping calculated at checkout.

Voltage AC/DC
Type
Communication
  • Compact, configurable room automation station in combination with actuator for HVAC
  • BACnet MS/TP communications (BTL certified)
  • USB interface
  • Operating voltage AC 24 V
  • Built-in 5 Nm actuator
  • Internal 0…500 Pa differential pressure sensor
  • Plug-in terminal blocks



Technical Specifications:

Operating voltage
AC 19.2…28.8 V, 24 V
Frequency
50/60 Hz
Power consumption
Max. 5.5 VA
Communication
BACnet MS/TP
Max. cable length
30 m
Universal inputs, number
2
Digital outputs, number
4
Analog outputs, number
1
Mounting
Directly on the damper shaft
Degree of protection
IP20
Dimensions (W x H x D)
143.1 x 83.6 x 137 mm
Documentation:
