Siemens

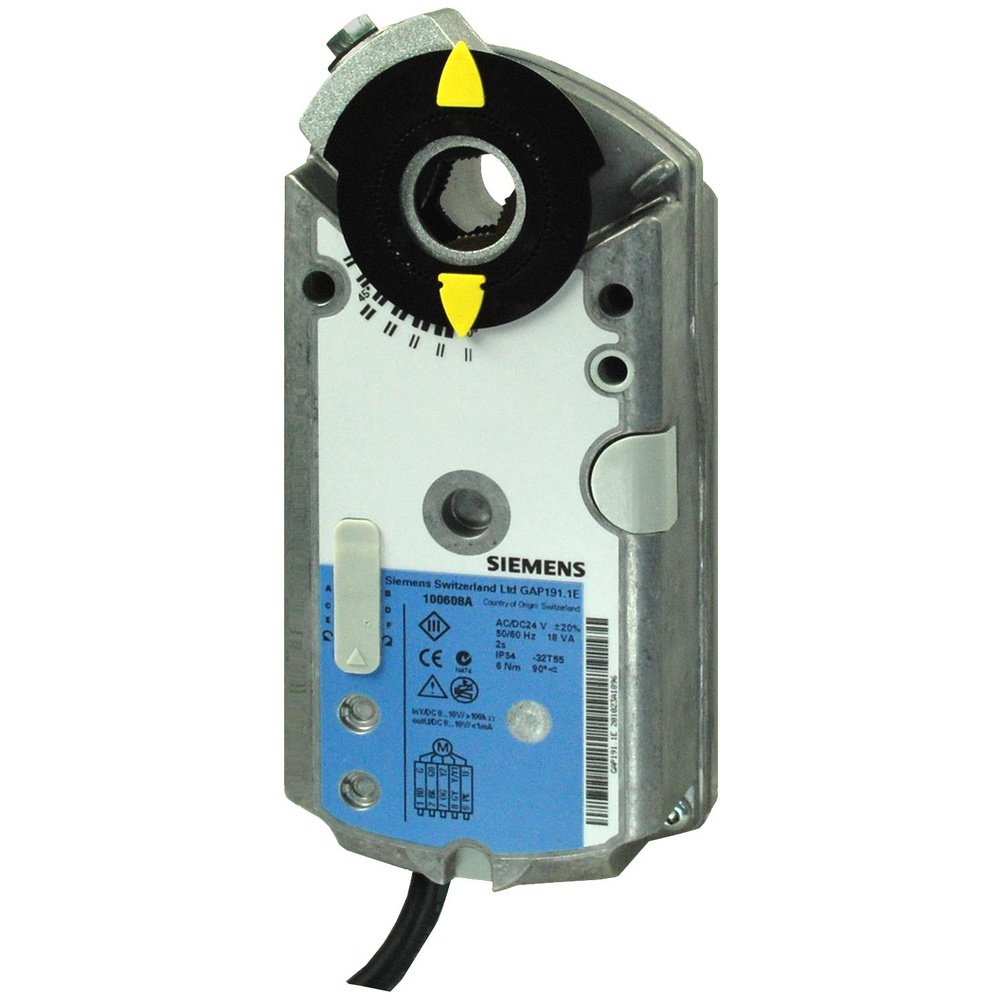

GAP191.1E Rotary air damper actuator, AC/DC 24 V, DC 0(2)...10 V/ 0(4)...20 mA, 6 Nm, 2 s
GAP191.1E Rotary air damper actuator, AC/DC 24 V, DC 0(2)...10 V/ 0(4)...20 mA, 6 Nm, 2 s
SKU:GAP191.1E
In stock
Regular price
RM1,570.00
Regular price
Sale price
RM1,570.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: Modulating (Electrical)
Couldn't load pickup availability
- With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
- With position indication and adjustable mechanical limit stop
- Button for disengaging the gear train to enable manual control
- With housing made of die-cast aluminium and 0.9 m connecting cable
Specification:
| Torque |
6 Nm
|
|
Air damper area
|
1 m²
|
|
Angular rotation
|
90°
|
|
Power consumption
|
30 VA, 22 W
|
|
Positioning time
|
2 s
|
|
Cable length
|
0.9 m
|
|
Positioning signal
|
DC 0(2)...10 V, 0(4)...20 mA
|
|
Degree of protection
|
IP54
|
|
Ambient temperature, operation
|
-32…50 °C
|
|
Medium temperature
|
-32…50 °C
|
|
Ambient humidity, operation
|
95 % r.h.
|
|
Dimensions (W x H x D)
|
81 x 192 x 63 mm
|
|
Operating voltage
|
AC/DC 24 V
|
|
Position feedback
|
DC 0…10 V
|
|
Auxiliary switch
|
0
|
