Siemens

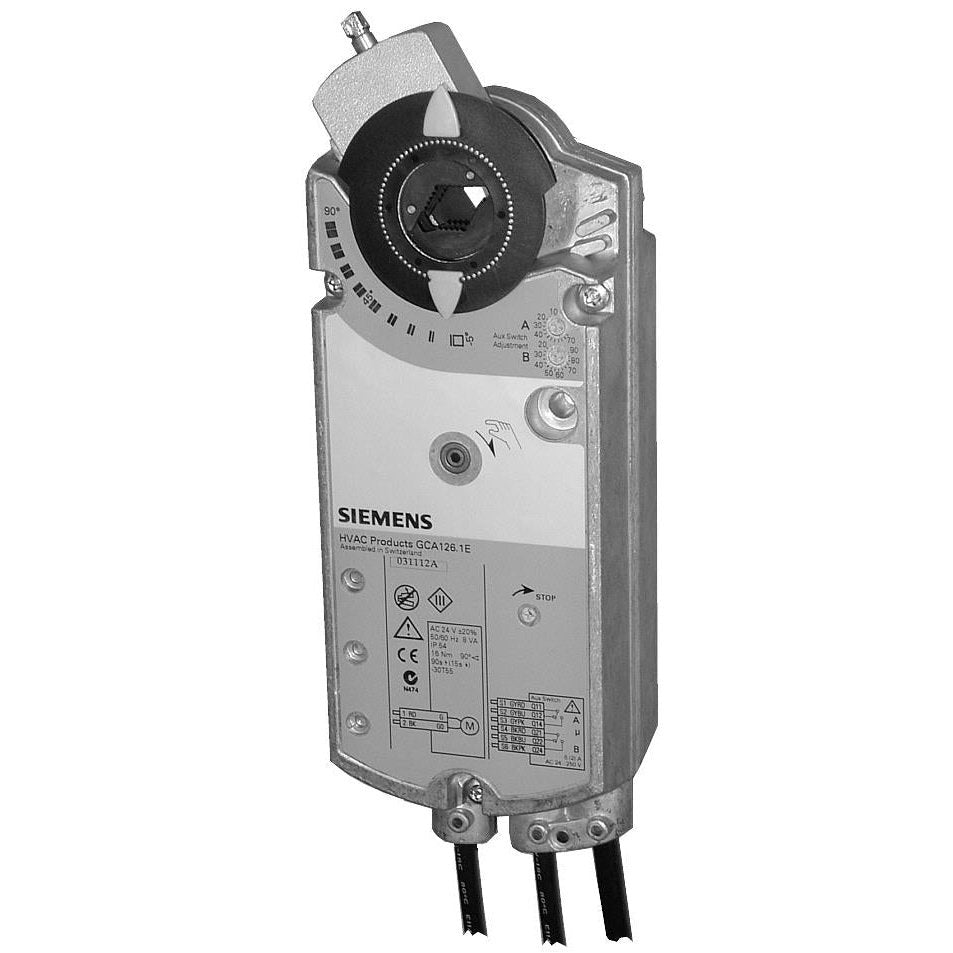

GCA161.1E Rotary air damper actuator, AC/DC 24 V, DC 0...10 V, 18 Nm, spring return 90/15 s
GCA161.1E Rotary air damper actuator, AC/DC 24 V, DC 0...10 V, 18 Nm, spring return 90/15 s
SKU:GCA161.1E
In stock
Regular price
RM1,886.00
Regular price
Sale price
RM1,886.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: Modulating (Electrical)
Couldn't load pickup availability
- With self-centering shaft adapter for shaft dia. 8..25.6 mm, square 6...18 mm, min. shaft length 20 mm
- With position indication and adjustable mechanical limit stop
- Manual override
- With housing made of die-cast aluminium and 0.9 m connecting cable
Specifications:
| Torque |
18 Nm
|
|
Air damper area
|
3 m²
|
|
Angular rotation
|
90°
|
|
Power consumption
|
7 VA, 5 W, Quiet power: 3 W
|
|
Positioning time
|
Open:90 s, Close:15 s
|
|
Cable length
|
0.9 m
|
|
Positioning signal
|
DC 0...10 V
|
|
Spring return function
|
Yes
|
|
Degree of protection
|
IP54
|
|
Ambient temperature, operation
|
-32…55 °C
|
|
Medium temperature
|
-32…55 °C
|
|
Ambient humidity, operation
|
95 % r.h.
|
|
Dimensions (W x H x D)
|
100 x 313 x 71 mm
|
|
Operating voltage
|
AC/DC 24 V
|
|
Position feedback
|
DC 0...10 V
|
|
Auxiliary switch
|
0
|
