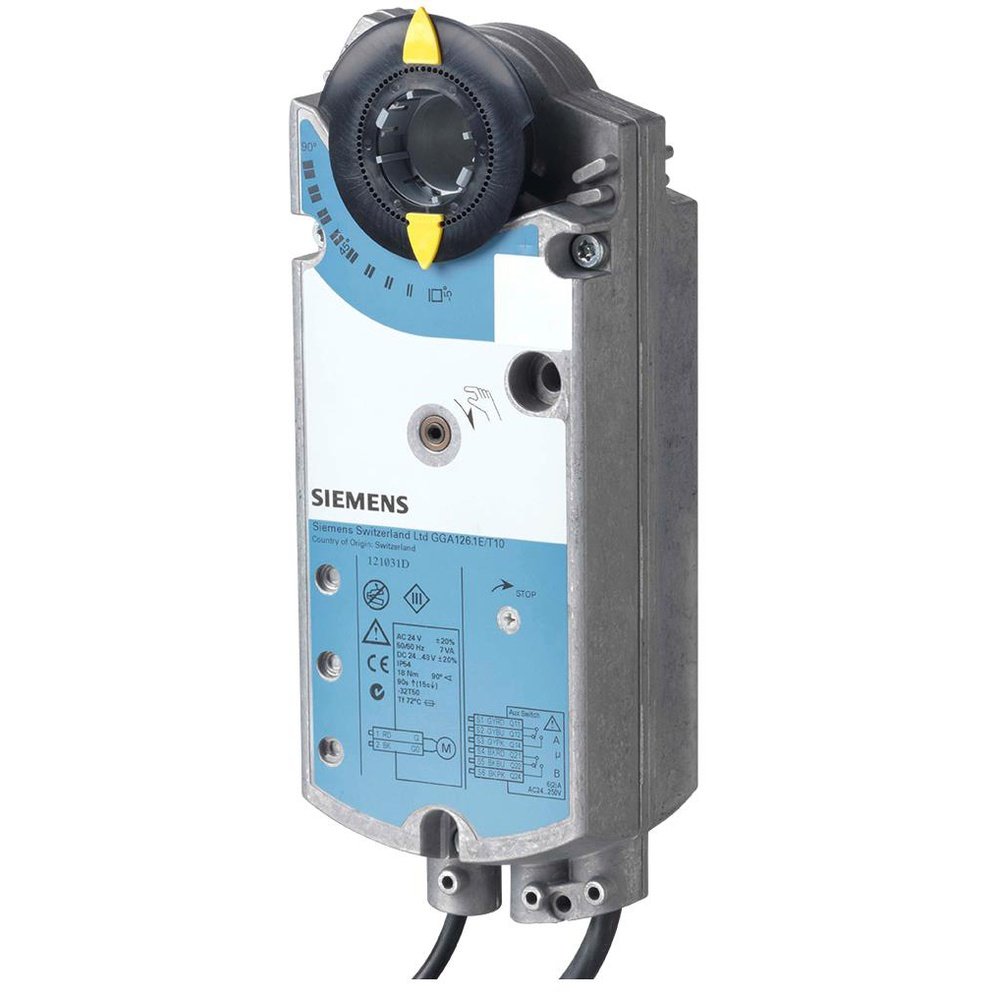

Actuator for fire protection dampers, AC 230 V, 2-position, 18 Nm, spring return 90/15 s, 2 auxiliary switches, shaft 10 x 10 mm
Actuator for fire protection dampers, AC 230 V, 2-position, 18 Nm, spring return 90/15 s, 2 auxiliary switches, shaft 10 x 10 mm
In stock
Regular price
RM1,582.00
Regular price
Sale price
RM1,582.00
Unit price
/
per
- Rotary type
- 2-position
- Spring return to failsafe position
- Fixed auxiliary switches for switching points 5 ° and 80 °
- Rigid connection between actuator and damper square shafts (10x10)
- Manual setting
- Position indicator
- Robust, lightweight all metal housing made from die-cast aluminium and 0.9 m connecting cable
- Degree of protection: Actuator IP54
Specifications:
Torque |
18 Nm
|
Air damper area
|
2.5 m²
|
Angular rotation
|
90°
|
Power consumption
|
8 VA, 6 W
|
Positioning time
|
Open:90 s, Close:15 s
|
Cable length
|
Supply: 2 x 0.75 mm² / auxiliary switch: 6 x 0.75 mm²
|
Positioning signal
|
2-position
|
Degree of protection
|
IP54
|
Ambient temperature, operation
|
-20…50 °C
|
Medium temperature
|
-32…50 °C
|
Ambient humidity, operation
|
95 % r.h.
|
Dimensions (W x H x D)
|
71 x 280 x 100 mm
|
Operating voltage
|
AC 230 V
|
