- For shaft dia. 8..16 mm, square 6...12 mm, min. shaft length 30 mm
- With position indication and adjustable mechanical limit stop
- Button for disengaging the gear train to enable manual override
- With base made of steel, plastic housing and 0.9 m connecting cable
1
/
of
1
Siemens

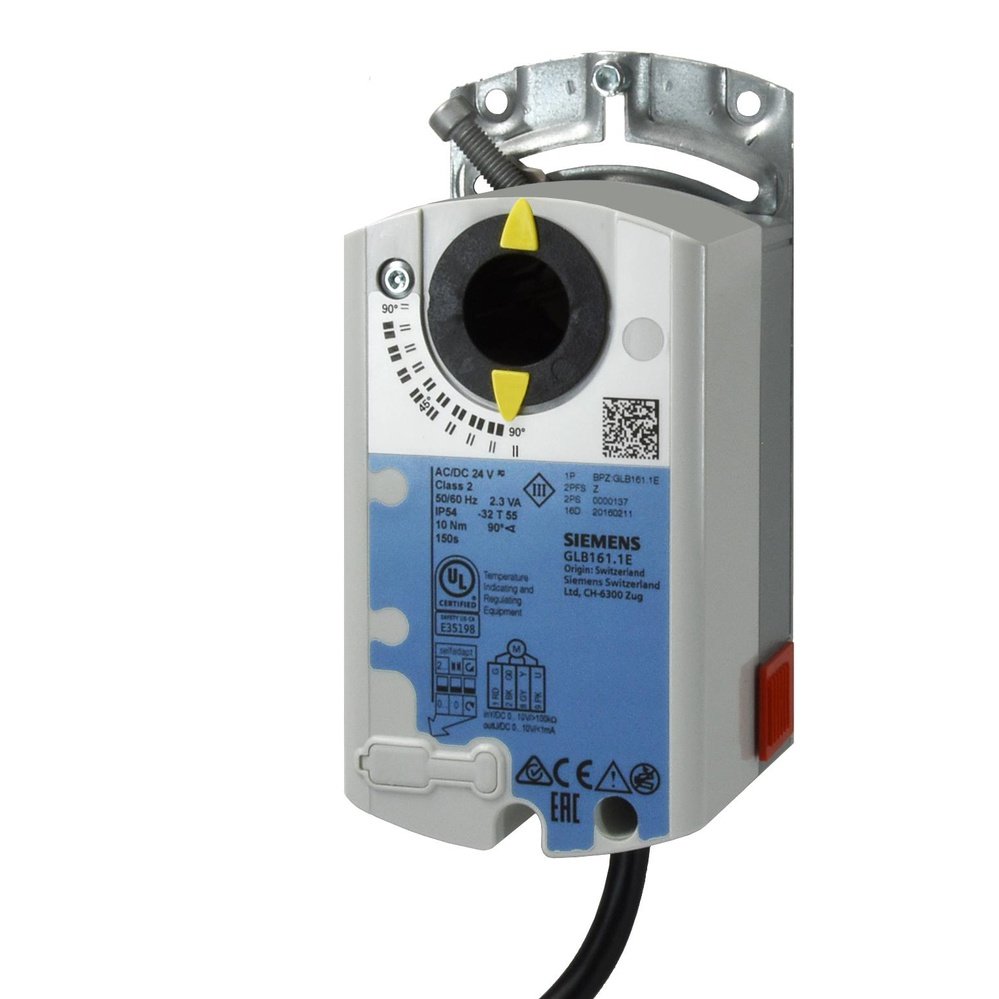

GLB161.1E Rotary air damper actuator, AC/DC 24 V, DC 0/2...10 V, 10 Nm, 150 s
GLB161.1E Rotary air damper actuator, AC/DC 24 V, DC 0/2...10 V, 10 Nm, 150 s
SKU:GLB161.1E
In stock
Regular price
RM1,126.00
Regular price
Sale price
RM1,126.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: Modulating (Electrical)
Couldn't load pickup availability
Specifications:
| Torque |
10 Nm
|
|
Air damper area
|
1.5 m²
|
|
Angular rotation
|
90°
|
|
Power consumption
|
1.5 VA, 1.5 W
|
|
Positioning time
|
150 s
|
|
Cable length
|
0.9 m
|
|
Positioning signal
|
DC 0/2...10 V
|
|
Degree of protection
|
IP54
|
|
Ambient temperature, operation
|
-32…55 °C
|
|
Medium temperature
|
None
|
|
Ambient humidity, operation
|
5…95 % r.h.
|
|
Dimensions (W x H x D)
|
68 x 137 x 59.5 mm
|
|
Operating voltage
|
AC/DC 24 V
|
|
Position feedback
|
DC 0…10 V
|
|
Auxiliary switch
|
0
|
