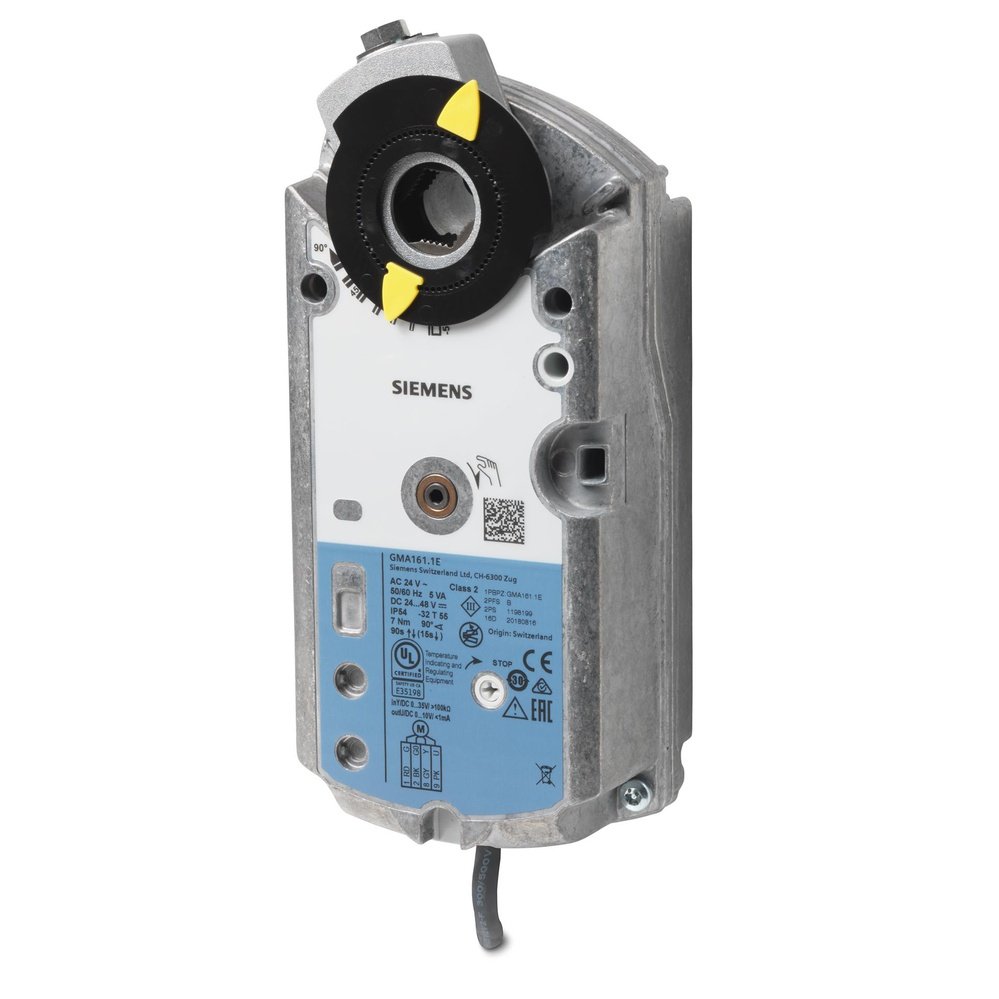

GMA161.1E Damper actuator, rotary, 7 Nm, IP54, AC/DC 24 V, DC 0…10 V, 90/15 s, spring return

Name: GMA161.1E Damper actuator, rotary, 7 Nm, IP54, AC/DC 24 V, DC 0…10 V, 90/15 s, spring return
Brand: Siemens
SKU: GMA161.1E
Price: 1486.0 MYR
Availability: InStock

SKU:GMA161.1E

In stock

RM1,486.00

Sold out

Shipping calculated at checkout.

Control Type: Modulating (Electrical)

Type Spring

Torque 7 Nm

Voltage AC/DC AC/DC 24 V

Quantity

With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
With position indication and adjustable mechanical limit stop
Manual override
With housing made of die-cast aluminium and 0.9 m connecting cable

Specification

Torque	7 Nm
Air damper area	1.5 m²
Angular rotation	90°
Power consumption	5 VA, 3.5 W
Positioning time	Open:90 s, Close:15 s
Cable length	0.9 m
Spring return function	Yes
Positioning signal	DC 0...10 V
Degree of protection	IP54
Ambient temperature, operation	-32…55 °C
Medium temperature	-32…55 °C
Ambient humidity, operation	95 % r.h.
Dimensions (W x H x D)	63 x 212 x 81 mm
Operating voltage	AC/DC 24 V
Position feedback	DC 0…10 V
Auxiliary switch	0

Documentations:

Technical data sheet - GMA161.1E
