Siemens

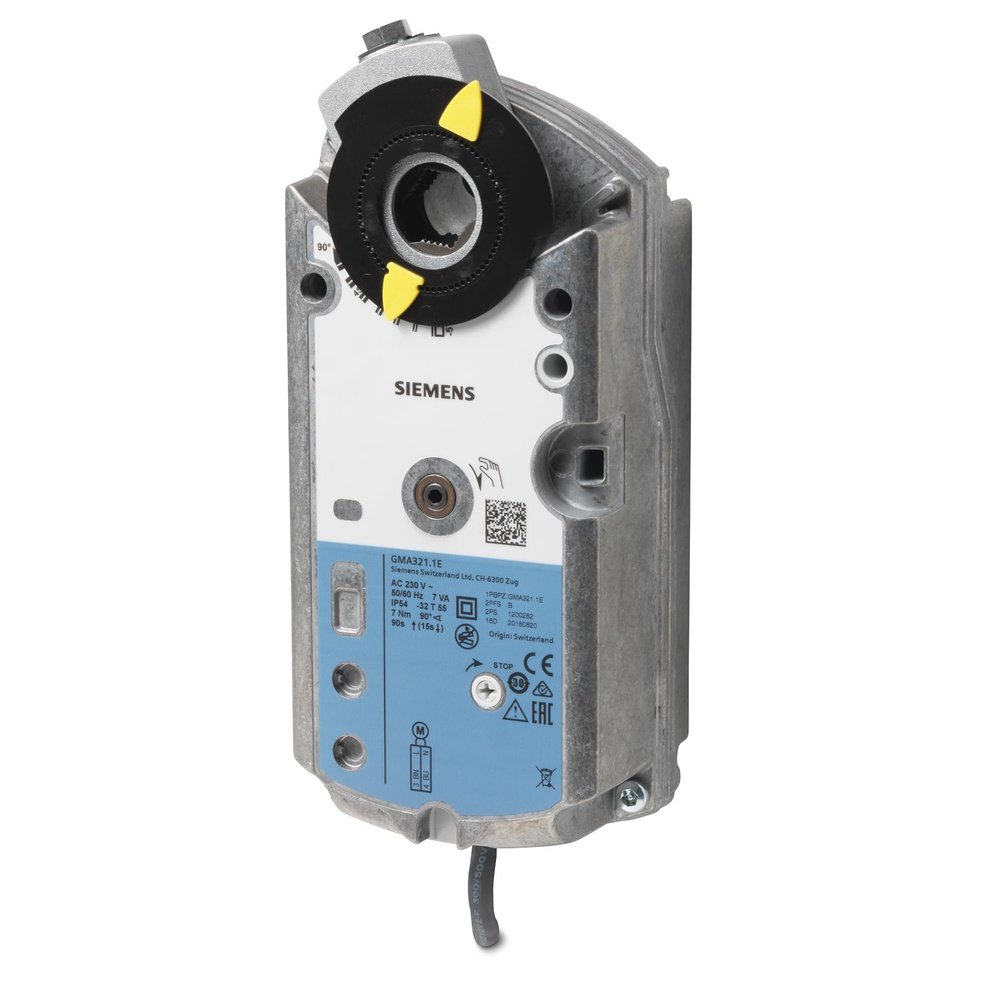

GMA321.1E Damper actuator, rotary, 7 Nm, IP54, AC 230 V, 2-position, 90/15 s, spring return
GMA321.1E Damper actuator, rotary, 7 Nm, IP54, AC 230 V, 2-position, 90/15 s, spring return
SKU:GMA321.1E
In stock
Regular price
RM1,310.00
Regular price
Sale price
RM1,310.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: On/Off
Couldn't load pickup availability
- With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
- With position indication and adjustable mechanical limit stop
- Manual override
- With housing made of die-cast aluminium and 0.9 m connecting cable
Specification
| Torque | 7 Nm |
| Air damper area | 1.5 m² |
| Angular rotation | 90° |
| Power consumption | 7 VA, 4.5 W |
| Positioning time | Open:90 s, Close:15 s |
| Cable length | 0.9 m |
| Spring return function | Yes |
| Positioning signal | 2-position |
| Degree of protection | IP54 |
| Ambient temperature, operation | -32…55 °C |
| Medium temperature | -32…55 °C |
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 63 x 212 x 81 mm |
| Operating voltage | AC 230 V |
| Position feedback | None |
| Auxiliary switch |
0 |
