Siemens

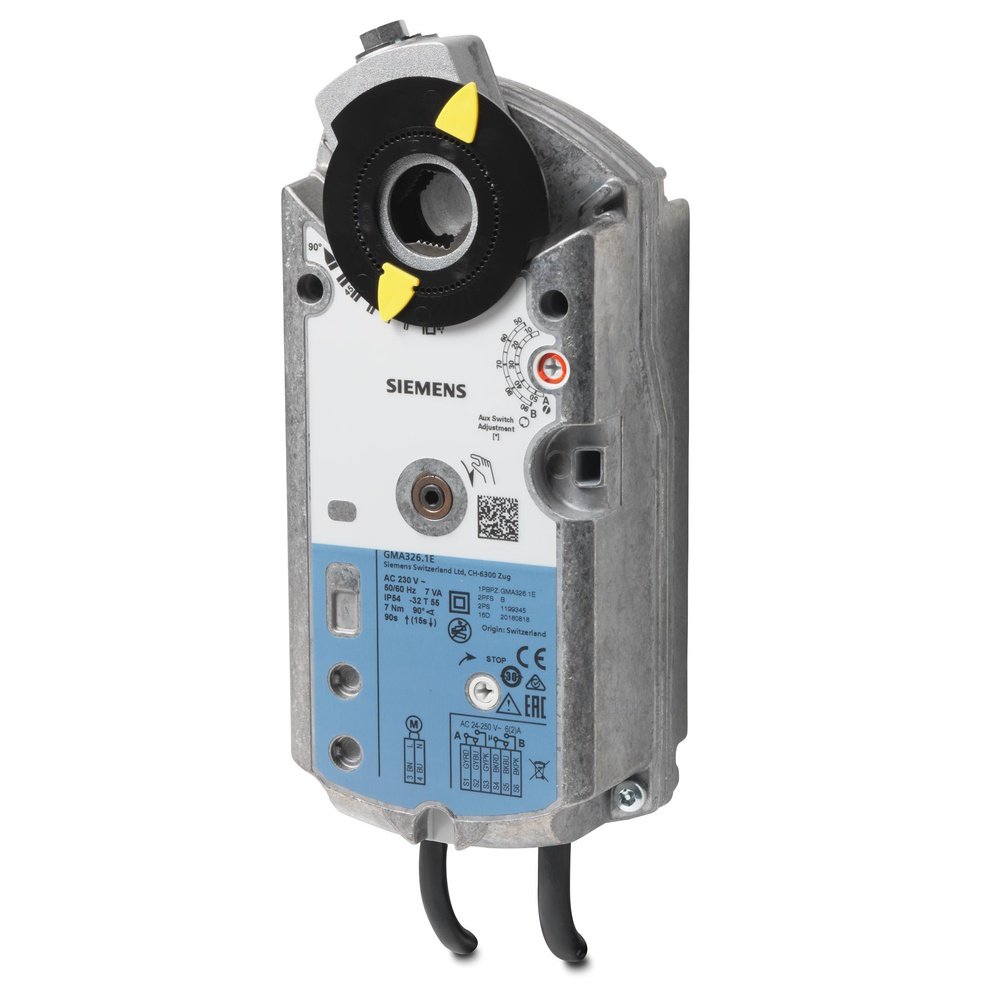

GMA326.1E Damper actuator, rotary, 7 Nm, IP54, AC 230 V, 2-position, 90/15 s, spring return, 2x aux switches
GMA326.1E Damper actuator, rotary, 7 Nm, IP54, AC 230 V, 2-position, 90/15 s, spring return, 2x aux switches
SKU:GMA326.1E
In stock
Regular price
RM1,588.00
Regular price
Sale price
RM1,588.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: On/Off
Couldn't load pickup availability
- With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
- With position indication and adjustable mechanical limit stop
- Manual override
- With housing made of die-cast aluminium and 0.9 m connecting cable
Specifications:
| Torque |
7 Nm
|
|
Air damper area
|
1.5 m²
|
|
Angular rotation
|
90°
|
|
Power consumption
|
7 VA, 4.5 W
|
|
Positioning time
|
Open:90 s, Close:15 s
|
|
Cable length
|
0.9 m
|
| Spring return function | Yes |
|
Positioning signal
|
2-position
|
|
Degree of protection
|
IP54
|
|
Ambient temperature, operation
|
-32…55 °C
|
|
Medium temperature
|
-32…55 °C
|
|
Ambient humidity, operation
|
95 % r.h.
|
|
Dimensions (W x H x D)
|
63 x 212 x 81 mm
|
|
Operating voltage
|
AC 230 V
|
|
Position feedback
|
None
|
|
Auxiliary switch
|
2
|
