Siemens

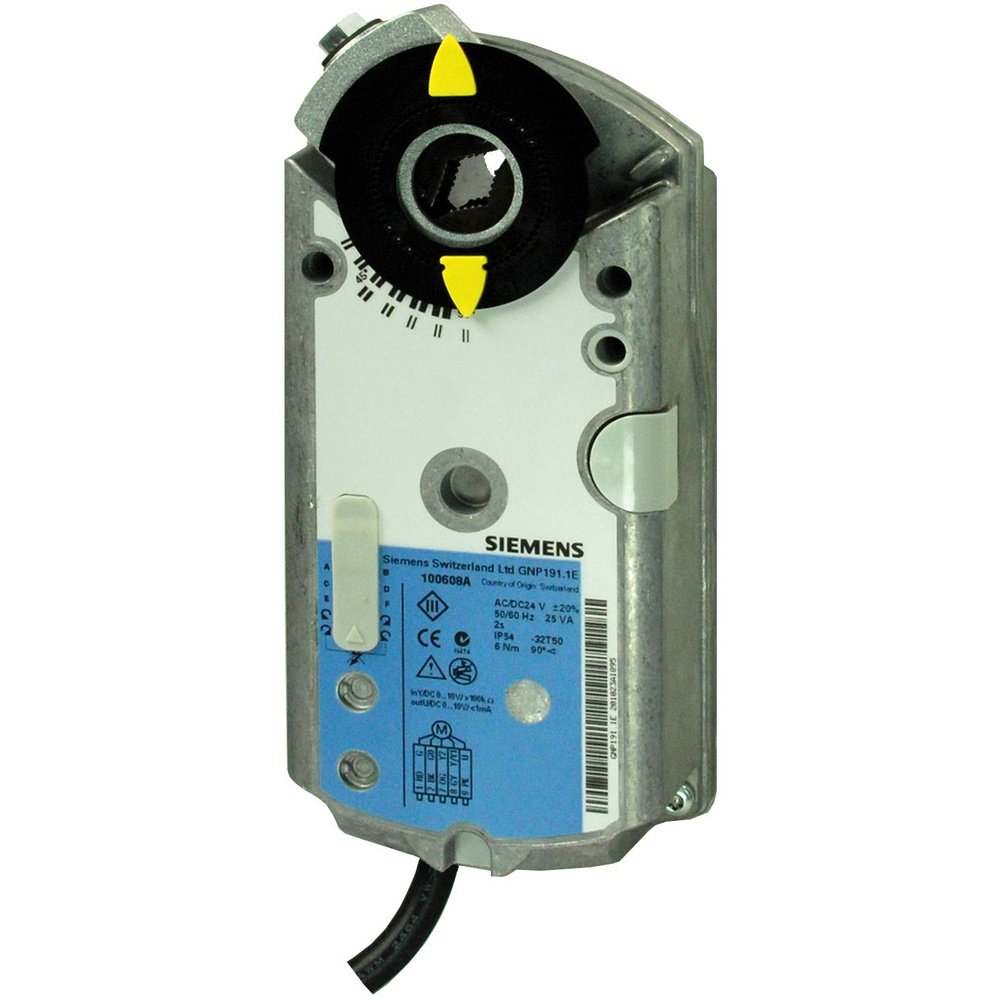

GNP191.1E Damper actuator, rotary, 6 Nm, IP54, AC/DC 24 V, 2-/3-position, DC 0...10 V/ 4...20 mA, 2 s, with electronic fail-save

GNP191.1E Damper actuator, rotary, 6 Nm, IP54, AC/DC 24 V, 2-/3-position, DC 0...10 V/ 4...20 mA, 2 s, with electronic fail-save

SKU:GNP191.1E

In stock

Regular price RM2,108.00
Regular price Sale price RM2,108.00
Sold out
Shipping calculated at checkout.

Control Type: Modulating (Electrical)

Type
Torque
Voltage AC/DC
  • With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
  • With position indication and adjustable mechanical limit stop
  • With housing made of die-cast aluminium and 0.9 m connecting cable



Specification

Torque 6 Nm
Air damper area 1 m²
Angular rotation 90°
Power consumption 20 VA, 13 W
Positioning time Open:2 s, Close:2 s
Cable length 0.9 m
Positioning signal DC 0(2)...10 V, 0(4)...20 mA
Degree of protection IP54
Ambient temperature, operation -18…50 °C
Medium temperature -18…50 °C
Ambient humidity, operation 95 % r.h.
Dimensions (W x H x D) 63 x 212 x 81 mm
Operating voltage AC/DC 24 V
Position feedback DC 0…10 V
Auxiliary switch 0

Data sheet
