Siemens

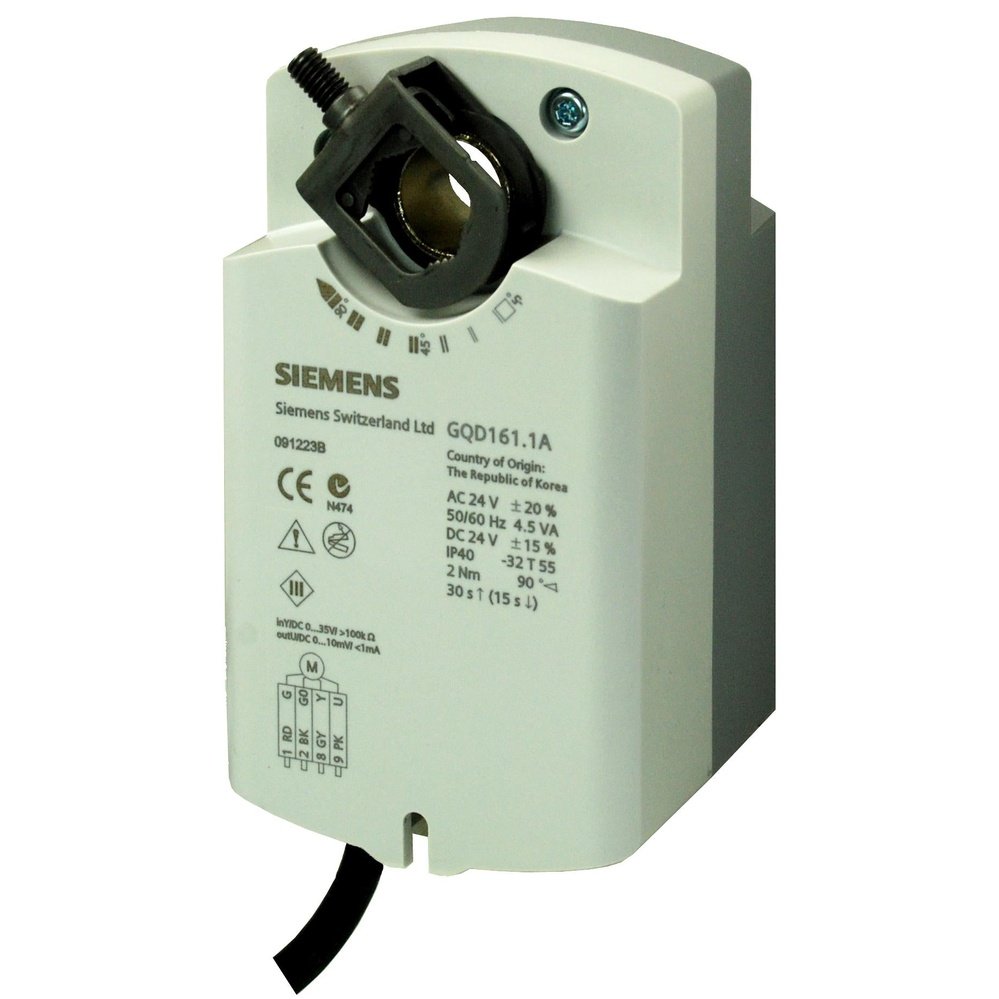

GQD161.1A Damper actuator, rotary, 2 Nm, IP40, AC/DC 24 V, DC 0...10 V, 30/15 s, spring return
GQD161.1A Damper actuator, rotary, 2 Nm, IP40, AC/DC 24 V, DC 0...10 V, 30/15 s, spring return
SKU:GQD161.1A
In stock
Regular price
RM1,016.00
Regular price
Sale price
RM1,016.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: Modulating (Electrical)
Couldn't load pickup availability
- For shaft dia 8...15 mm, square 6...11 mm, min. shaft length 20 mm
- With housing made of plastic and 0.9 m connecting cable
Specification
| Torque | 2 Nm |
| Air damper area | 0.3 m² |
| Angular rotation | 90° |
| Power consumption | 4.5 VA, 3 W |
| Positioning time | Open:30 s, Close:15 s |
| Cable length | 0.9 m |
| Positioning signal | DC 0...10 V |
| Degree of protection | IP40 |
| Ambient temperature, operation | -32…55 °C |
| Medium temperature | -32…55 °C |
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 73 x 122 x 63 mm |
| Operating voltage | AC/DC 24 V |
| Position feedback | DC 0…10 V |
| Auxiliary switch | 0 |
