Siemens

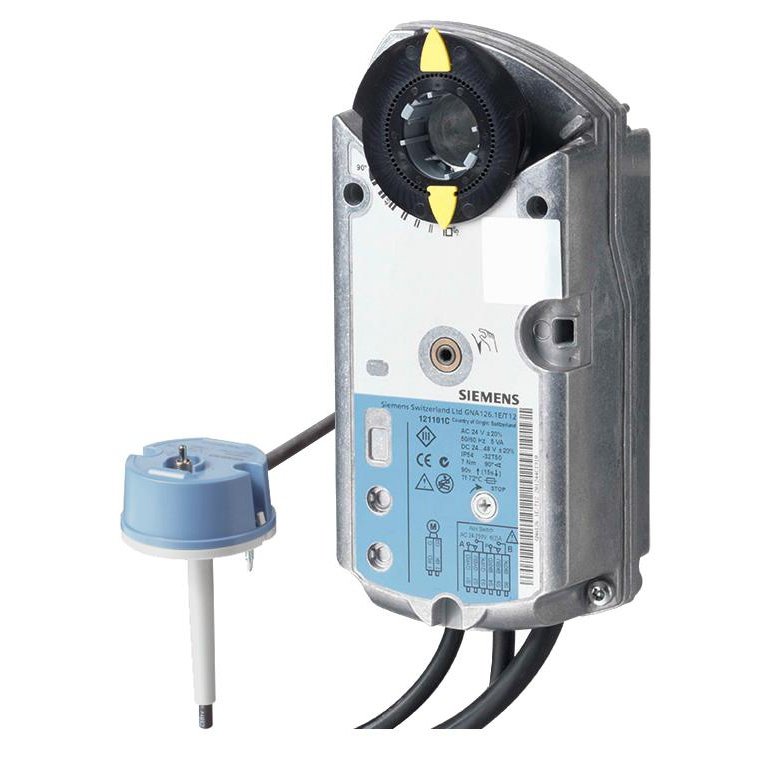

Actuator for fire protection dampers, AC 230 V, 2-position, 4 Nm, spring return 90/15 s, 2 auxiliary switches, shaft 10 x 10 mm

Actuator for fire protection dampers, AC 230 V, 2-position, 4 Nm, spring return 90/15 s, 2 auxiliary switches, shaft 10 x 10 mm

SKU:GRA326.1E/10

In stock

Regular price RM868.00
Regular price Sale price RM868.00
Sold out
Shipping calculated at checkout.

Control Type: On/Off

Type
Torque
Voltage AC/DC
  • Rotary type
  • 2-position
  • Spring return to failsafe position
  • Temperature monitoring unit (for 72 °C)
  • Fixed auxiliary switches for switching points 5 ° and 80 °
  • Rigid connection between actuator and damper square shafts (10x10)
  • Manual setting
  • Position indicator
  • Robust, lightweight all metal housing made from die-cast aluminium and 0.9 m connecting cable
  • Degree of protection: Temperature monitoring unit IP54 / Actuator IP54



Specification

Torque 4 Nm
Air damper area 0.6 m²
Angular rotation 90°
Power consumption 7 VA, 4.5 W
Positioning time Open:90 s, Close:15 s
Connection cable Supply: 2 x 0.75 mm² / auxiliary switch: 6 x 0.75 mm²
Positioning signal 2-position
Ambient temperature, operation -20…50 °C
Medium temperature 72 °C
Dimensions (W x H x D) 81 x 178 x 63 mm
Operating voltage AC 230 V



Documentations:

Technical data sheet - GRA326.1E/10
