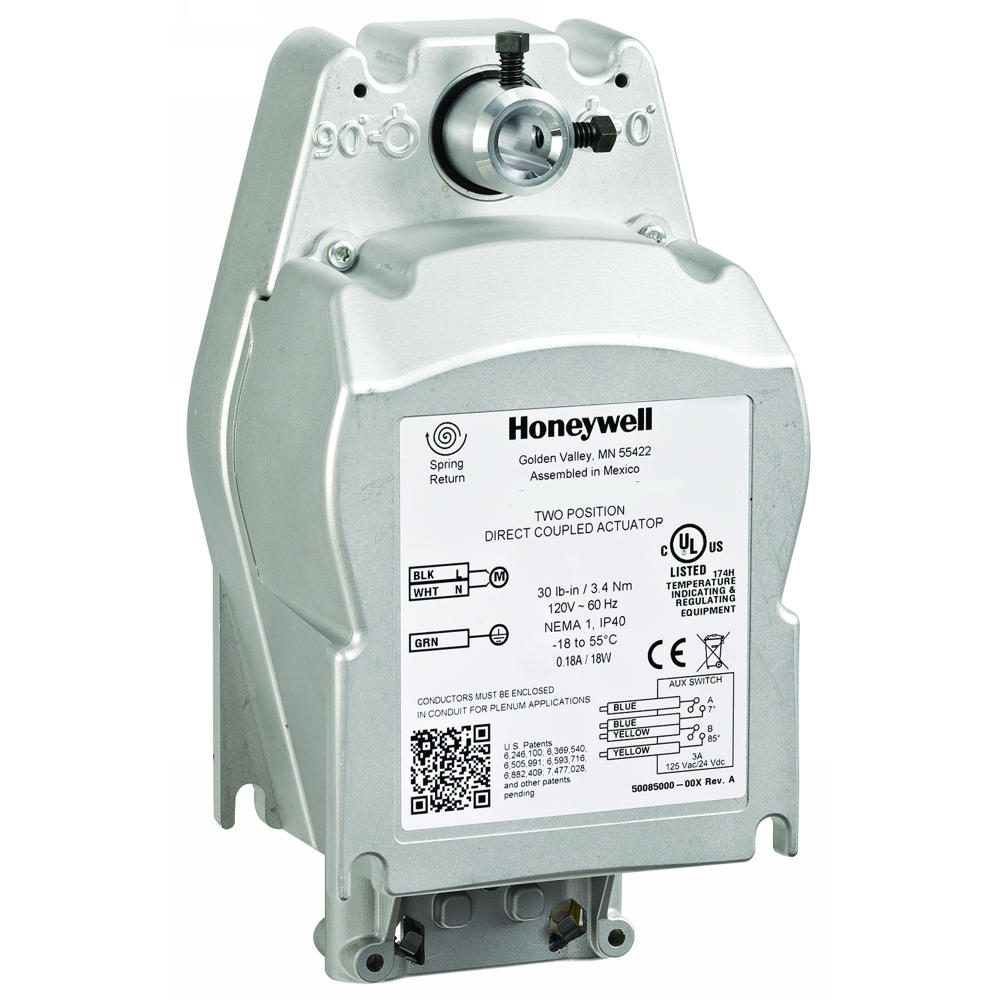

Fire and Smoke Actuator, Spring Return, 30 lb-in, 230 Vac, 2-position (SPST)

Honeywell's Fast-Acting, Two-Position Actuators are line volt (230 V), 30 lb-in., spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (CW) or counterclockwise (CCW) spring rotation.

Damper Actuator, 230 VAC, 30 in-lb, Motor Timing: 15 sec at 60 Hz, Direct Coupled Mount, Aluminum, 8.9 in H x 5.13 in W x 3.32 in D, Import

Features

• 30 lb-in minimum driving torque at 350 deg F
• Integral spring return ensures level of return torque
• 15 sec spring return timing
• No special cycling required during long-term holding
• No audible noise during holding
• Patent pending design eliminates need for limit switches to reduce power consumption
• 95 deg angle of rotation
• Actuator holds rated torque at reduced power level
• Die-cast aluminum housing
• Housing design allows flush mounting to damper
• Designed to operate reliably in smoke control systems requiring UL555S ratings up to 350 deg F
• (2) Integral 3/8 in clip-in flexible conduit connections
• 50/60 Hz frequency
• 32 in color-coded leads electrical connections
• 5 to 95% RH operating humidity, non-condensing
• Power consumption: Driving -0.13 A, 18 W, holding - 0.10 A, 11 W
• -40 to 140 deg F shipping and storage temperature
• 0 to 130 deg F ambient temperature
• Environmental, electrical or ingress protection rating: NEMA 1, IP40
• No internal auxiliary switch

Specifications

Documentations:

Technical data sheet - MS4604F1010
