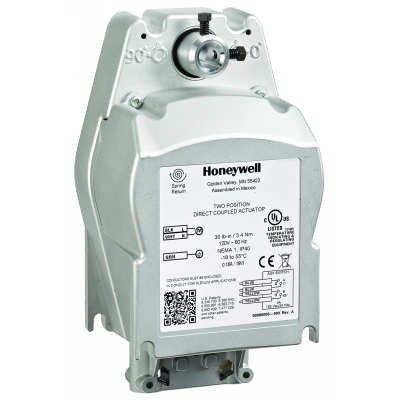

Fire and Smoke Actuator, Spring Return, 80 lb-in, 230 Vac, 2-position (SPST)

Honeywell's Fast-Acting, Two-Position Actuators are line volt (230 V), 80 lb-in, spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (CW) or counterclockwise (CCW) spring rotation.

Damper Actuator, 230 VAC, 80 in-lb, Motor Timing: 15 sec at 60 Hz, Direct Coupled Mount, Aluminum, 8.9 in H x 5.13 in W x 3.32 in D, Import

Features

• (2) Integral 3/8 in clip-in flexible conduit connections
• 50/60 Hz frequency
• 32 in color-coded leads electrical connections
• 5 to 95% RH operating humidity, non-condensing
• 0.13 A, 23 W driving, 0.09 A, 7 W holding power consumption
• -40 to 140 deg F shipping and storage temperature
• 0 to 130 deg F ambient temperature
• Environmental, electrical or ingress protection rating: NEMA 1, IP40
• No internal auxiliary switch
• Maximum noise rating: Driving - 80 dB(A) at 1 m, holding - 20 dB(A) at 1 m (no audible noise)
• 95+/-3 deg stroke
• Shaft Dimensions: 1/2 in round
• Control signal: 2-position, SPST
• Additional torque ratings: Maximum stall - 240 lb-in, minimum driving at 350 deg F - 80 lb-in
• Spring return timing: 15 sec
• Aluminum hub, (2) set screws shaft adapter
• 13 mm round shaft
• Spring return direction: By orientation
• Fail safe mode: Spring return
