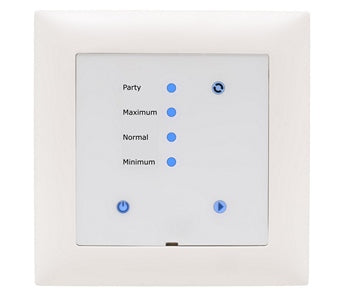

MZ3-FA-V11 Touch controller

Positioner and controller with touch panel for comfort ventilation.

The MZ3 is a microprocessor controlled precision positioner and controller with touch panel.
Through parameters the positioner may be configured to work for most of the standard ventilation applications. Settings such as switching levels of the control curve and ventilation strengths for each step may be adjusted. The configuration may be performed using the programming device called OPA-S. This device my be used as well as visualize measuring values.

The device includes a control function and is able to control ventilation level based on an input of a sensor (CO2, VOC, RH, Temperature) or a building automation system.

Applications

• For ventilation systems for comfort applications
• For example for well insulated residential areas which are required to be ventilated

Features Specifications:

• Positioner and controller for comfort ventilation with touch panel
• Manual operation with four steps, OFF, minimum air, 1st step, 2nd step, maximum air
• AUTO operation: The controller activated the ventilation based on control curve. The controls curve may be adjusted
• Automatic reset of the maximum air level
• One 0...10 VDC controls output to control the ventilation system
• One 0...10 VDC input to measure CO2 or other sensors
• Password protected control settings
