Belimo

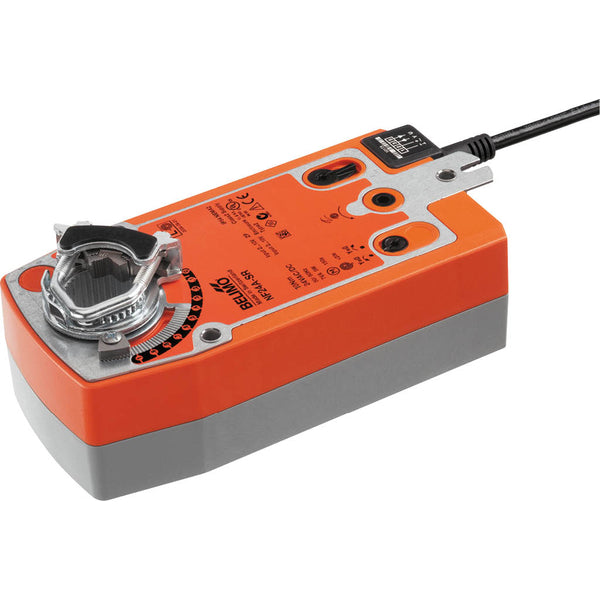

Rotary actuator fail-safe, 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
Rotary actuator fail-safe, 10 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
SKU:NF24A-SR
In stock
Regular price
RM1,718.00
Regular price
Sale price
RM1,718.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: Modulating (Electrical)
Couldn't load pickup availability
Specifications:
| Angle of rotation | 95 |
| Control type | DC 2...10 V |
| Degree of protection | IP54 |
| Direction of rotation (fail-safe) | Selectable by mounting L/R |
| Electrical connection | Cable |
| Fail-safe function | Fail-safe |
| Manual override | By means of hand crank and locking switch |
| Mechanical interface | Universal shaft clamp 10...25.4 mm |
| Power consumption (holding) | 2.5 W |
| Power consumption (running) | 3.5 W |
| Running time (fail-safe) | <20 s |
| Running time (motor) | 150 s / 90° |
| Torque | 10 Nm |
| Voltage AC/DC | AC/DC 24 V |
Documentation:
Technical data sheet – NF24A-SR
Installation instructions - NF24A-S.. / NF24A-M.. / SF24A-S.. / SF24A-M..
