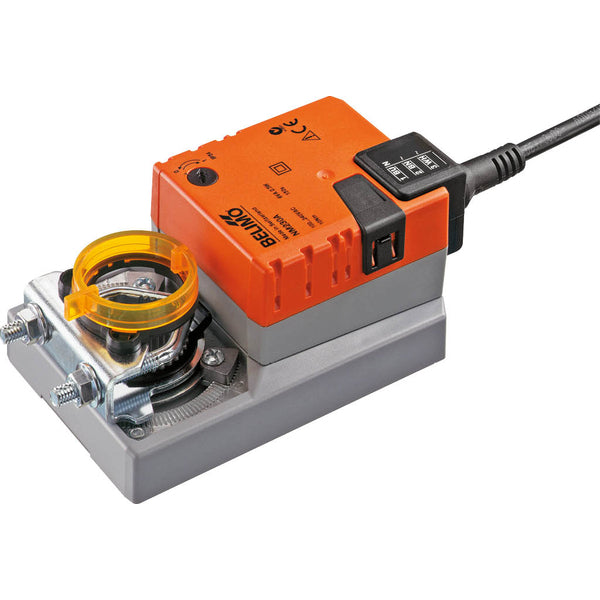

Rotary actuator, 10 Nm, AC 100...240 V, Open/close, 3-point, 150 s, IP54

Angle of rotation	95
Control type	Open/close; 3-point
Degree of protection	IP54
Electrical connection	Cable
Fail-safe function	Non fail-safe
Manual override	With push-button, can be locked
Mechanical interface	Universal shaft clamp 8...26.7 mm
Power consumption (holding)	0.6 W
Power consumption (running)	2.5 W
Running time (motor)	150 s / 90°
Torque	10 Nm
Voltage AC/DC	AC 100...240 V



Documentation:

Technical data sheet – NM230A

Installation instructions - NM..A..

EU Declaration of Conformity - NM230A
