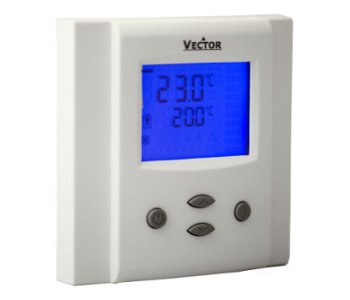

OPA2-2T(H)-VC Remote display and operation terminal for X2 series controllers

The OPA2-2T(H)-VC is a remote display and operation terminal for X2 series controllers with an internal temperature / humidity sensor and two passive inputs.

Applications

• Configuration and operation terminal for X2 series controller
• Remote supervision (RS485)

Features Specification

• Remote access to controller state, setpoints, inputs and outputs
• Access to time schedule and clock settings
• Access to configuration parameters
• RS485 peer to peer communication according to proprietary protocol of Vector Controls GmbH
• The terminal adapts itself to the X2 controller used. One terminal thus fits all the configuration variations of the X2 product range.
• Integrated temperature sensor (-T) and humidity sensor (-H)
