Vector Controls
OPT1 Remote display and operation terminal for X2 series controllers
OPT1 Remote display and operation terminal for X2 series controllers
SKU:OPT1-FU-TNV-VC
Low stock: 5 left
Regular price
RM1,008.00
Regular price
Sale price
RM1,008.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

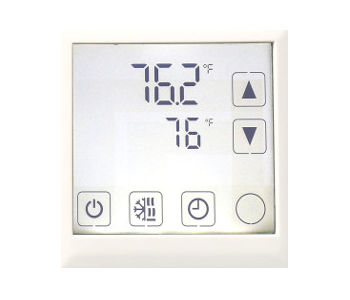

The OPT1 is a remote display and operation terminal for X2 series controllers with peer to peer RS485 communication and 1 external passive input and 1 voltage input. By using different frames and mounting plate, it is possible to mount this device to most of the existing flush mounted electrical connection boxes.
Applications
- Configuration and operation terminal for X2 series controller
- Remote supervision (RS485)
Features Specifications:
- Resistive touch dispaly with white backlit LCD
- Access to time schedule and clock settings
- Access to configuration parameters
- RS485 peer to peer communication
- The terminal adapts itself to the X2 controller used. One terminal thus fits all the configuration variations of the X2 product range.
- Internal temperature and -H version humidity sensor
- 1 passive input
- Different frames and mounting plates
| Item name | Item code | Description |
| OPT1-FU-TNV-VC | 40-500116 | Operation terminal for TCX2, TCI2 and SxC2 controller with peer to peer RS485 communication and 1 internal temperature sensor, 1 external passive and 1 voltage input with AMM-UD-W package (rectangular frame and mounting plate) |
| OPT1-FA-TNV-VC | 40-500136 | Operation terminal for TCX2, TCI2 and SxC2 controller with peer to peer RS485 communication and 1 internal temperature sensor, 1 external passive and 1 voltage input with AMM-AD-W package (square frame and mounting plate) |
| OPT1-FA-HTNV-VC | 40-500135 | Operation terminal for TCX2, TCI2 and SxC2 controller with peer to peer RS485 communication and 1 internal temperature and humidity sensor, 1 external passive and 1 voltage input with AMM-AD-W package (square frame and mounting plate) |
| OPT1-FU-HTNV-VC | 40-500137 | Operation terminal for TCX2, TCI2 and SxC2 controller with peer to peer RS485 communication and 1 internal temperature and humidity sensor, 1 external passive and 1 voltage input with AMM-UD-W package (rectangular frame and mounting plate) |
