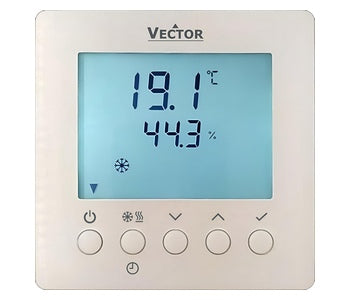

OPF2-VC Remote display and operation terminal for X2 series controllers

The OPF2-2T-VC, OPF2-2TH-VC is a surface wall-mountable remote display and operation terminal for the X2 controllers and sensors and includes a temperature and two passive inputs. The OPF2-2TH-VC contains as well a humidity sensor. The large backlit display allows easy configuration of the parameters and operation of the controller.

Applications

• Configuration and operation terminal for X2 series controller
• Remote supervision (RS485)

Features Specifications:

• Display and change of operation state and set points
• Display input values according to real values not voltage signals
• Display and change of configuration parameters
• Integrated temperature sensor (-T)
• Integrated humidity sensor (-TH)
• 2 passive inputs, may be used for door contacts, light switches etc.
• Surface mounting
• Access to time schedule and clock settings
• Access to configuration parameter
• RS485 peer to peer communication to a X2 controller over a proprietary protocol

• The terminal adapts itself to the X2 controller used. One terminal thus fits all the configuration variations of the X2 product range.
