- Output for on/off valve actuator, 3-wire on/off valve
- 3-speed fan control: Automatic or manual
- Manual heating / cooling changeover or continuous Cooling only / Heating only
- Operation modes: Comfort and Protection
- Adjustable commissioning and control parameters
- Optional display of room temperature or setpoint
- Minimum and maximum setpoint limitation
- Display temperature in increments of 0.5 °C or °F
- Color of housing: signal white (RAL 9003)
- LED backlit display
- Full or partial keylock
- Internal sensor calibration
- Timer with delay off function: preset or user selection from 1 to 23 hours
- Return to previous mode or Protection (Off) mode upon power down
- Fan speed low or off in deadzone
- Fan minimum On-time
- Three standard color housings on bulk pack for project delivery
- Customization is also available by request

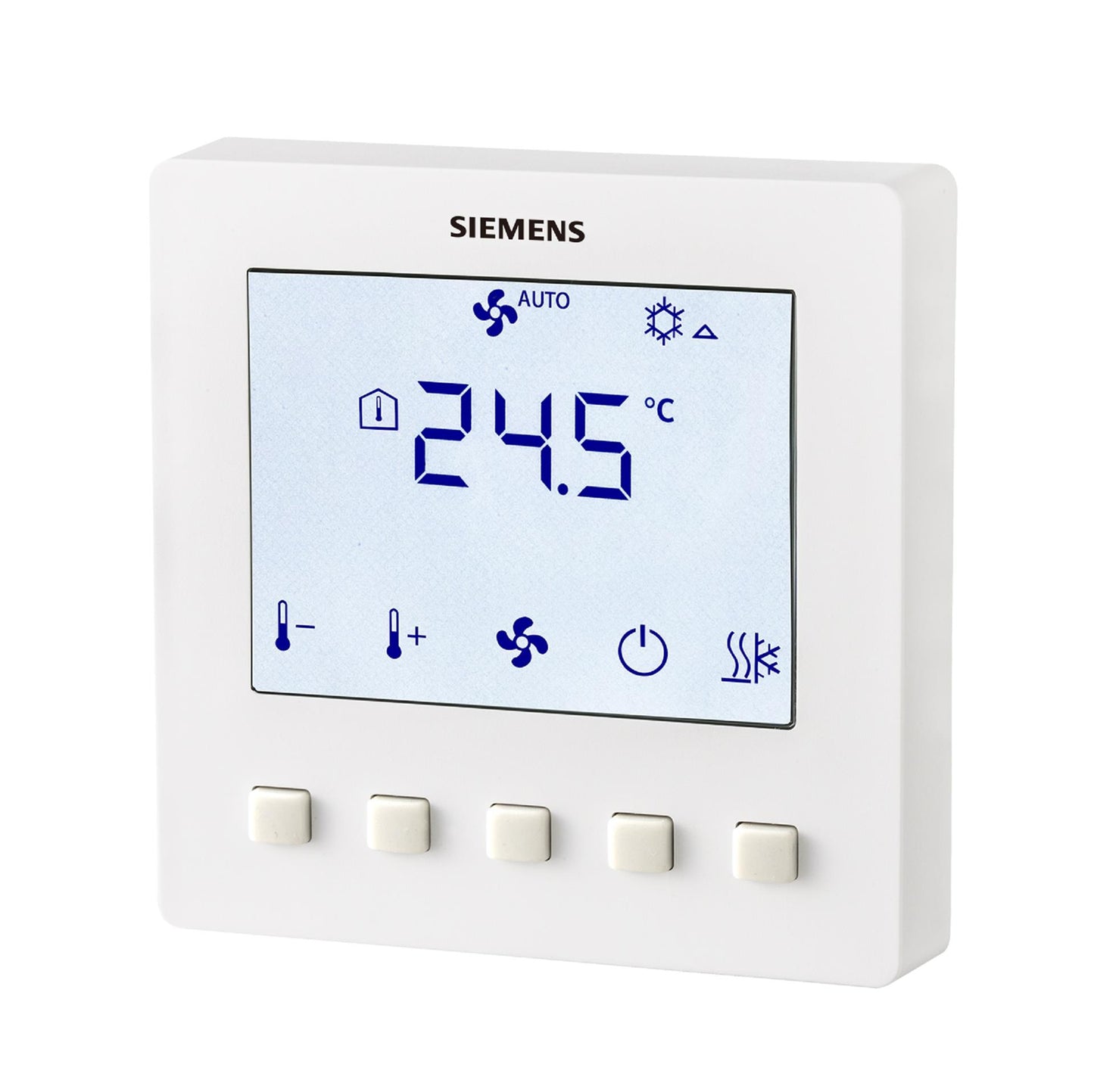

RDF510 Flush mount room thermostat for 2-pipe FCU with on/off output, fit for square conduit boxes
RDF510 Flush mount room thermostat for 2-pipe FCU with on/off output, fit for square conduit boxes
393 in stock
Regular price
RM254.00
Regular price
RM212.00
Sale price
RM254.00
Unit price
/
per
Flush-mount thermostat with LCD display for fan coil units
Additional info
- LED backlit display
- Keylock function
- Display either room temperature or setpoint
- Comfort and Protection(Off) operating modes
- Automatic or manual heating/cooling changeover
- Automatic or manual 3-speed fan control
- Selectable fan operation in deadzone
- Timer with delay Off function: preset or user selection from 1 to 23 hours
- Minimum and maximum setpoint limitation
- Return to previous operating mode or Protection(Off) upon power down
- Internal sensor calibration
- Adjustable commissioning and control parameters
- Fit into 86x86 conduit boxes
- Housing available in different colors
Technical Specifications:
Operating voltage | AC 230 V |
Power consumption | 12 VA |
Setpoint setting range
|
5…40 °C
|
Switching differential | Heating/Cooling: 0.5…6 K; (factory seeting:1 K); |
Relay outputs | Fan: Normally open contact , Valve: Normally open contact , Non floating |
Relay outputs, number | 4 |
Relay output, switching voltage | 230 V |
Relay output, switching current | 4 (2) A |
Type of fixing
|
Recessed rectangular conduit box BS4662 with fixing centres of 60.3 mm
|
Dimensions (W x H x D)
|
86 x 86 x 39 mm
|
