Siemens

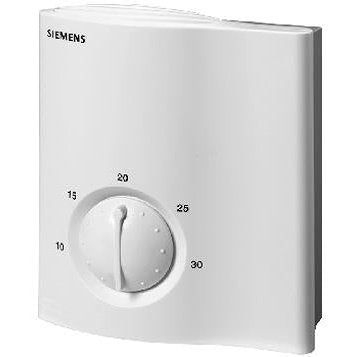

RLA162 Room temperature controller, AC 24 V, 2 outputs DC 0…10 V
RLA162 Room temperature controller, AC 24 V, 2 outputs DC 0…10 V
SKU:RLA162
Low stock: 10 left
Regular price
RM1,418.00
Regular price
Sale price
RM1,418.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Electronic controller designed for room mounting applications. It is configurable for heating and/or cooling applications and can operate as a single controller or together with duct mounted units (RLM) for limiting.
Application:
Modulating temperature controller, with 1 or 2 continuous DC 0...10 V output signals. The RLA162 is used for control and limiting of room temperatures in small HVAC plants.
The following units can be controlled:
- Heating (or cooling) valve actuators
- Air damper actuators
- Step controllers or current valves for electric heating
- Signal converters
Features:
- Low limitation input (supply air temperature)
- Compensation via outside sensor
- Connection for remote setting unit
- P or PI control (selectable)
- Service modes
- Heating and cooling modes available
- Setpoint changeover via external contact or time switch
Technical Specifications:
|
Frequency
|
50/60 Hz
|
|
Power consumption
|
2 VA
|
|
Setpoint readjustment range
|
0…10 K
|
|
Setpoint setting range
|
8…30 °C
|
|
Analog input, signal
|
LG-Ni1000 , DC 0...10 V
|
|
Analog outputs, number
|
2
|
|
Analog output, signal
|
DC 0...10 V
|
|
Analog output, current
|
1 mA
|
|
Digital inputs
|
Potential-free input signal
|
|
Digital input, contact query
|
3…6 mA, DC 6…15 V
|
|
Digital outputs, number
|
1
|
|
Degree of protection
|
IP30
|
|
Dimensions (W x H x D)
|
97 x 114 x 43 mm
|
