Siemens

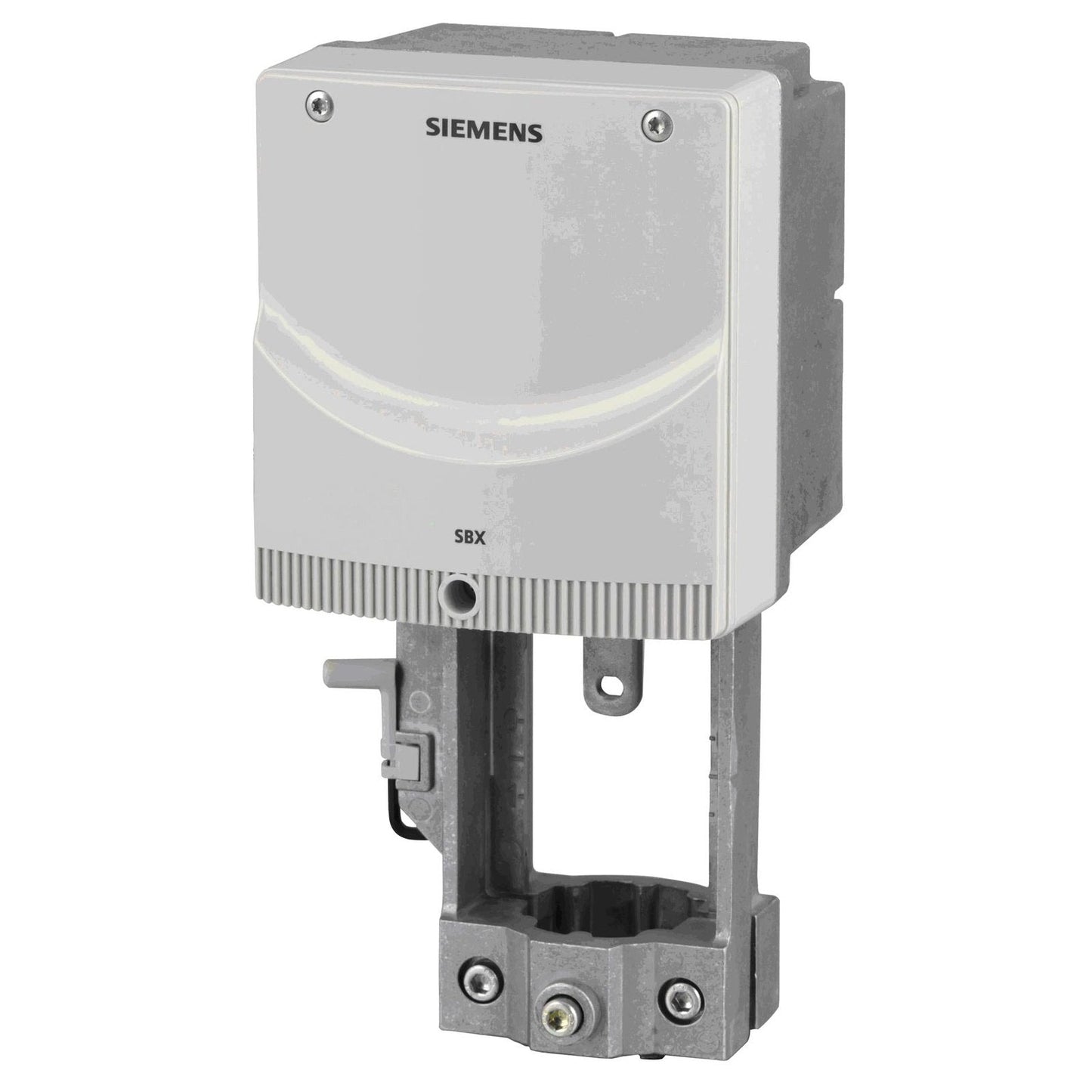

SBX61 Electromotoric actuator, AC 24 V, DC 0…10 V
SBX61 Electromotoric actuator, AC 24 V, DC 0…10 V
SKU:SBX61
Low stock: 5 left
Regular price
RM2,334.00
Regular price
Sale price
RM2,334.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: Modulating (Electrical)
Couldn't load pickup availability
Electromotoric actuator for the operation of Siemens PICV, types VPF44../VPF54.. with 20 mm stroke as control valves in ventilation, air conditioning, district heating and cooling systems. (only for China, India, Taiwan, ASEAN)
Technical Specifications:
|
Positioning force
|
700 N
|
|
Stroke
|
20 mm
|
|
Nominal stroke
|
20 mm
|
|
Power consumption
|
5 VA
|
|
Positioning time
|
120 s
|
| Positioning signal | DC 0...10 V |
|
Degree of protection
|
IP 54
|
|
Ambient temperature, operation
|
-10…55 °C
|
|
Medium temperature
|
1…95 °C; 33.8…203 ºF
|
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 125 x 256 x 113 mm |
|
Mounting position
|
Upright to horizontal
|
|
Operating voltage
|
AC 24 V
|
