Vector Controls

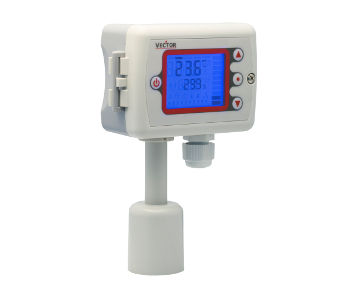

SOC2-TH Outdoor Controller and Sensor (X2 OS) for Temperature and Humidity

SOC2-TH Outdoor Controller and Sensor (X2 OS) for Temperature and Humidity

SOC2-TH-210.102U-1

Low stock: 5 left

RM1,144.00
RM1,144.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

The SOC2 is a programmable controller and sensor with communication capabilities. It is for outdoor sensing with rain protection (IP63). Each control loop may use 2 PI sequences and 2 binary stages. The SOC2 comes with a built in RS485 communication interface that allows peer to peer communication with an operation terminal such as OPT1-(2TH)-VC.

Communication plug-in allow for integration of the controller into a network. These modules are described in their own manual. Currently available are plug-ins for BACnet and MODBUS. There is also a Wi-Fi communication option available which supports Modbus TCP and BACnet IP. An embedded webserver provides a web interface to access the controller in order to change the connection settings and to operate the controller.

Flexible application configuration is made with a parameter-setting routine using the standard operation terminal.

Complete parameter sets may be copied by use of an accessory called AEC-PM2 or exchanged with a PC using an RS485-USB converter or Wi-Fi communication and the EasySet program.

Applications

  • Ventilation control
  • Air measurement
  • Zone control
  • VAV control

Features Specifications:

  • 2 universally configurable control loops
  • Functions for dehumidifying, set point shift and cascade control
  • Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation
  • Free heating and cooling with economizer function based on enthalpy or temperature
  • Differential, averaging, min and max functions, enthalpy and dew point calculations
  • Transmitter function for inputs and set points
  • BACnet MS/TP or slave MODBUS communication over RS485 RTU or ASCII
  • BACnet IP or Modbus TCP communication over Wi-Fi (Wi-Fi interface required)
  • Webserver that supports SOC2 operation trough browser or mobile devices (Wi-Fi interface required)
  • Universal analog outputs (VDC, mA) and one relay with a normally open and a normally closed contact (SPDT)
  • 8 freely assigned alarm conditions, selectable state of outputs on alarm condition
  • Measures tempearture and humidity
  • Password protected programmable user and control parameters
  • Clone parameter set with plug-in memory AEC-PM2 - easily transport application parameters to multiple controllers
  • Exchange data with PC using the EasySet tool

Item name Item code Functions Description
SOC2-TH-210.102U-1 40-300181 Temperature and humidity sensor outdoor sensor and  controller
with communication
2 controll loops
1 universal inputs
1 relay
2 analog outputs
SOC2-TH-210.102U-BAC-1 40-300182 Temperature and humidity sensor
with BACnet MS/TP communication
SOC2-TH-210.102U-MOD-1 40-300183 Temperature and humidity sensor
with Modbus RTU or ASCII communication
SOC2-TH-210.102U-OP-1 40-300184 Temperature and humidity sensor with display
SOC2-TH-210.102U-OP-BAC-1 40-300185 Temperature and humidity sensor with display
and BACnet MS/TP communication
SOC2-TH-210.102U-OP-MOD-1 40-300186 Temperature and humidity sensor with display
and Modbus RTU or ASCII communication
SOC2-TH-210.102U-WIM-1 40-300200 Temperature and humidity sensor
with Modbus TCP over Wi-Fi communication
SOC2-TH-210.102U-WIB-1 40-300202 Temperature and humidity sensor
with BACnet IP over Wi-Fi communication


Documentations:

Operation Manual - SOC2

Operation Manual - SOC2-MOD

Operation Manual - SOC2-BAC

Installation sheet - SOC2
