Vector Controls

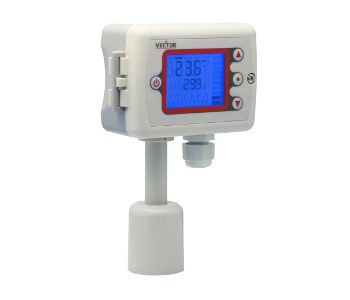

SOC-H1T1 Active humidity / temperature transmitter for outdoor mounting

SOC-H1T1 Active humidity / temperature transmitter for outdoor mounting

SKU:SOC-H1Tn10-A3-1

Low stock: 5 left

Regular price RM758.00
Regular price Sale price RM758.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

The SOC-H1T1 measures the relative humidity with a unique capacitive sensor element while temperature is measured by a band-gap sensor. The microprocessor samples the humidity once per second. It calcualtes an averaging signal over a preset number of seconds and generates the output signal based on lower and upper signal range values.

A version with a display is possible by ordering the integrated display accessory OPC-S.

Applications

  • Outdoor humidity and temperature measurement for heating, ventilation and air conditioning applications
  • Recording of minimum and maximum values for critical environments
  • Supervision of critical humidity and temperatures

            Features Specifications:

            • Outdoor humidity and temperature measurement
            • For AES4: Sensor reconditioning function against contamination
            • For AES4: Anti-Creep function for high humidity environments
            • Replaceable sensor element
            • Minimum and maximum value memory
            • Optional alternative signal ranges programmable
            • Selectable averaging signal
            • Optional external display (OPU-S)
            • Status LED
            Item name Item code Description
            SOC-H1T1-A3-1-W0 40-300156-0 Temperature sensor incl. AES3-HT-A3 (sensor element with 3% accuracy) and AMC1 (cable gland) for outdoor mounting
            Temperature range: -40...60 °C (default)
            SOC-H1T1-A3-1-W1 40-300156-1 Temperature sensor incl. AES3-HT-A3 (sensor element with 3% accuracy) and AMC1 (cable gland) for outdoor mounting
            Temperature range: -35...35 °C
            SOC-H1T1-A3-1-W2 40-300156-2 Temperature sensor incl. AES3-HT-A3 (sensor element with 3% accuracy) and AMC1 (cable gland) for outdoor mounting
            Temperature range: -0...50 °C
            SOC-H1T1-OP-W0 40-300089-0 Temperature sensor incl. AES3-HT-A3 (sensor element with 3% accuracy) and AMC1 (cable gland) for outdoor mounting
            Temperature range: -40...60 °C (default)
            SOC-H1T1-OP-W1 40-300089-1 Temperature sensor incl. AES3-HT-A3 (sensor element with 3% accuracy) and AMC1 (cable gland) for outdoor mounting
            Temperature range: -35...35 °C
            SOC-H1T1-OP-W2 40-300089-2 Temperature sensor incl. AES3-HT-A3 (sensor element with 3% accuracy) and AMC1 (cable gland) for outdoor mounting
            Temperature range: -0...50 °C

            Included

            Item name Item code Description
            AMC-1 40-500073 Cable gland
            AES3-HT-A3 40-500103 3 % accuracy



            Documentations:

            Operation Manual - SOC-H1T1

            Install Sheet - SOC-Hxxx
