Vector Controls

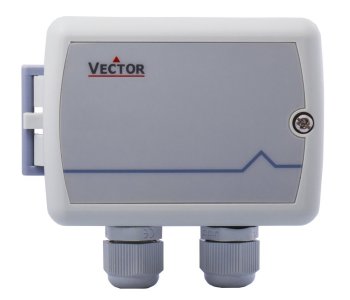

SCC-T1-Tp2 Programmable temperature transmitter for PT1000 probes for a wide and accurate measurement range

SCC-T1-Tp2 Programmable temperature transmitter for PT1000 probes for a wide and accurate measurement range

SKU:SCC-T1-Tp2-1

Low stock: 5 left

Regular price RM700.00
Regular price Sale price RM700.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

Programmable temperature transmitter for PT1000 probes for a wide and accurate measurement range

The transmitter measures the temperature for a PT1000 platinum film element.

The temperature range may be customized by DIP switches or if required by programming

The output signal range and type may be customized by jumpers or if required by programming.
Standard output signal ranges are 0-10VDC, 2-10VDC, 0-20mA and 4-20mA.

Other ranges can be set on the optional built-in operation terminal “OPC-S V2” or by connecting an external operation terminal “OPA-S / OPU-S”.

For more details, see the operation manual in the downloads section.

Applications

  • For indoor, outdoor, duct, immersion temperature measurement in the field of heating, ventilation and air conditioning applications
  • Measure exactly the temperature range you need
  • Recording of minimum and maximum values for critical environments
  • Supervision of critical temperatures

            Features Specifications:

            • Precision temperature measurement for different ranges and accuracies
            • Minimum and maximum temperature memory
            • 0…10V, 0…20mA or 2…10V, 4…20mA measuring signal output, selectable with jumpers
            • DIP switch for temperature range pre-set
            • Alternative temperature signal ranges programmable (operation terminal)
            • Selectable averaging filter for the measurement signal
            • Optional LCD display (OPC-S V2) or external display (OPA-S / OPU-S)
            • Status LED
            • Modbus RTU/ASCII RS485 for monitoring and configuration
            • Copy of settings with accessory (AEC-PM2)
            Item name Item code Description
            SCC-T1-Tp2-1 40-300157 Temperature transmitter for PT1000 sensor (sensor not included) with 2 cable glands
            SCC-T1-Tp2-MOD-1 40-300241 Temperature transmitter, for PT1000 sensor (sensor not included) with 2 cable glands and Modbus RTU / ASCII communication

              Included

              Item name Item code Description
              AMC-1 40-500073 Cable gland



              Documentations:

              Operation Manual - SCC-T1-Tp2

              Operation Manual - SCC-T1-Tp2 MOD

              Install Sheet - SCC-T1-Tp2
