Vector Controls

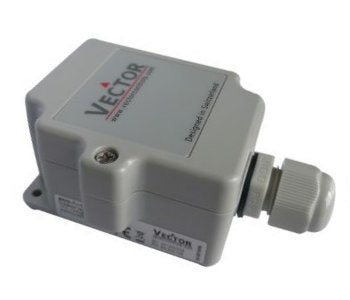

SOD-T - Passive temperature sensor for outdoor mounting with conduit connector
SOD-T - Passive temperature sensor for outdoor mounting with conduit connector
SKU:SOD-Tn3-1
Low stock: 5 left
Regular price
RM114.00
Regular price
Sale price
RM114.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The SOD-T measures the temperature by use of a glass packed thermistor with a negative temperature coefficient (NTC), a platinum film (PT) or a nickel thin layer (NI) based probe. Its resistance changes according to the temperature. The change follows a specified curve.
Applications
- Outside air temperature measurements for summer/winter compensation, energy optimization and economizer
- Frost protection control of outside air dampers
Features Specifications:
- Outdoor temperature measurement
- Thermistor, NI and PT sensing elements to fit your system
- Simple and secure installation
- Wide range of temperature probes
|
Item name
|
Item code | Probe type | Description |
| SOD-Tn3-1 | 40-200141 | NTC 3kΩ at 25 °C | B25/50: 3935 |
| SOD-Tn10-1 | 40-200108 | NTC10kΩ at 25 °C | B25/50: 3935 |
| SOD-Tn11-1 | 40-200143 | B25/50: 3630 | |
| SOD-Tn12-1 | 40-200144 | B25/50: 3380 | |
| SOD-Tn20-1 | 40-200145 | NTC 20kΩ at 25 °C | B25/50: 4200 |
| SOD-Tn100-1 | 40-200146 | NTC 100kΩ at 25 °C | B25/50: 4200 |
| SOD-Tp1-1 | 40-200147 | PT100 | EN 60751 |
| SOD-Tp2-1 | 40-200148 | PT1000 | EN 60751 |
| SOD-Tk5-1 | 40-200149 | NI1000, 5000 ppm/K | DIN 43760 |
