Electromotoric actuator 100 N for combi valves
1
/
of
1
Siemens

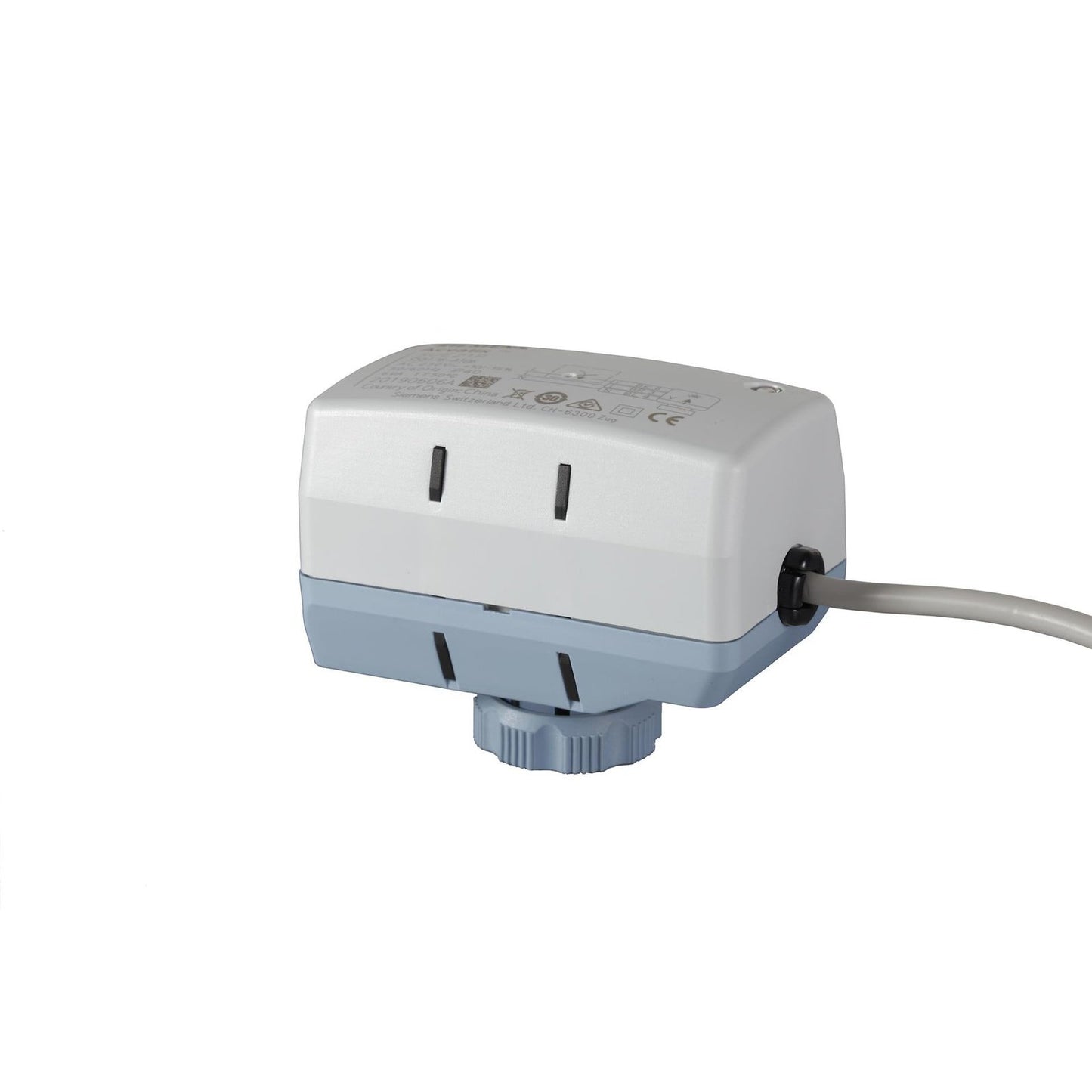

SUE21P Electromotoric actuator 100 N for combi valves
SUE21P Electromotoric actuator 100 N for combi valves
SKU:SUE21P
Low stock: 5 left
Regular price
RM220.00
Regular price
Sale price
RM220.00
Unit price
/
per
Shipping calculated at checkout.
Control Type: On/Off
Couldn't load pickup availability
Additional info
For fitting to the valve: plastic union nut M30 x 1.5
Technical Specifications:
| Positioning force |
100 N
|
|
Stroke
|
5 mm
|
|
Nominal stroke
|
5 mm
|
|
Power consumption
|
6V VA at 50 Hz
|
|
Positioning time
|
50 Hz:12 s, 60 Hz:10 s
|
|
Cable length
|
0.8 m
|
|
Positioning signal
|
2-position (SPST)
|
|
Spring return function
|
No
|
|
Degree of protection
|
IP40
|
|
Ambient temperature, operation
|
1…50 °C
|
|
Medium temperature
|
1…110 °C
|
|
Mounting position
|
Upright to 90°, horizontal; do not suspend
|
|
Ambient humidity, operation
|
5…85 % r.h.
|
|
Dimensions (W x H x D)
|
95 x 77 x 56 mm
|
|
Operating voltage
|
AC 230 V
|
|
Color
|
Gray
|
