Vector Controls

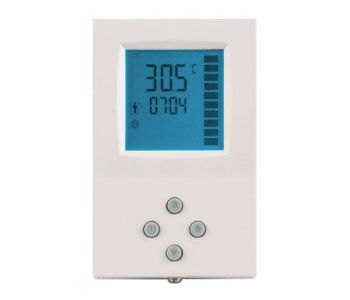

TCI-W13 / W23-U Compact universal single or dual loop PI-controllers for wall mounting with 1 relays, 2 analog outputs and 2 inputs

TCI-W13 / W23-U Compact universal single or dual loop PI-controllers for wall mounting with 1 relays, 2 analog outputs and 2 inputs

SKU:TCI-W13-U

Low stock: 5 left

Regular price RM738.00
Regular price Sale price RM738.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

The TCI-W is a universal single or dual loop controller with PI- and binary sequences for wall mounting.

Applications

  • Fan coil units
  • Heat exchangers
  • Zoning
  • VAV
  • Air handlers
  • Fan, pump control
  • Humidifiers / Dehumidifiers
  • Ventilation
  • Radiant heating / cooling
  • Pressurization

    Features Specifications:

    • Universal PID and/or binary control for any analog input/output signal and range
    • Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation
    • Differential, averaging, min. and max. functions
    • Cascading of control loops (-W23)
    • Alarm monitoring of low and high limits on all inputs
    • Programmable reaction in case of alarm
    • Feedback function for inputs and set points
    • Functions for dehumidifying, set point shift, cascade control
    • Password protected programmable user and control parameters

    Deluxe version

    • Power cap protected real-time clock with 48hr power backup
    • 7-day programmable schedules, with options including change of set points and direct position of manual outputs
    • Blue backlight



    Item name
    Item code Description
    TCI-W13-U 40-100174 1 loop, PI-controller, wall flush mounted,
    1 UI, 2 AO, 1 DO (relay)
    TCI-W13-U-H 40-100175 1 loop, PI-controller, wall flush mounted,
    int. TI, 1 UI, 2 AO, 1 DO (relay),
    int. humidity sensor 3% accuracy
    TCI-W23-U 40-100176 Deluxe version, 2 loops, PI-controller, wall flush mounted, int. TI, 1 UI, 1 TI, 2 AO, 1 DO (relay)
    TCI-W23-U-H 40-100177 Deluxe version, 2 loops, PI-controller, wall flush mounted, int. TI, 1 UI, 1 TI, 2 AO, 1 DO (relay)
    int. humidity sensor 3% accuracy



    Documentations:

    Operation Manual - TCI-Wx3-U

    Install Sheet- TCI-Wx3-U

    Install Sheet- TCI-Wx3-U-H
