Vector Controls

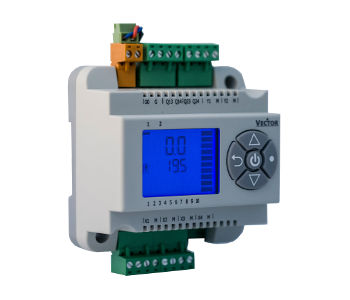

TCI-C Compact universal single or dual loop PI-controllers cabinet mounted

TCI-C Compact universal single or dual loop PI-controllers cabinet mounted

TCI-C11-0

Low stock: 5 left

RM816.00
RM816.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

The TCI-C is a universal single or dual loop controller with PI- and binary sequences for cabinet mounting.

Applications

  • Heat exchangers
  • Zoning
  • Boilers
  • VAV
  • Air handlers
  • Fan, pump control
  • Humidifiers / Dehumidifiers
  • Ventilation
  • Radiant heating / cooling
  • Pressurization

    Features Specifications:

    • Universal PID and/or binary control for any analog input/output signal and range
    • Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation
    • Differential, averaging, min. and max. functions
    • Cascading of control loops (-C22 type)
    • Alarm monitoring of low and high limits on all inputs
    • Programmable reaction in case of alarm
    • Feedback function for inputs and set points
    • Functions for dehumidifying, set point shift, cascade control

    Deluxe version

    • Power cap protected real-time clock with 48hr power backup
    • 7-day programmable schedules, with options including change of set points and direct position of manual outputs
    • Blue backlight



    Item name
    		 Item code Description
    TCI-C11-0 40-110060 1 loop, PI-controller, cabinet mounted,
    2 UI-NTC, 1 AO, 2 DO (relays)
    TCI-C13-0 40-110064 1 loop, PI-controller, cabinet mounted,
    2 UI-NTC, 1 AO, 2 DO (TRIAC)
    TCI-C22-0 40-110062 Deluxe version, 2 loops, PI-controller, cabinet mounted, 4 UI-NTC, 2 AO, 2 DO (relays)
    TCI-C14-0 40-110071 1 loop, PI-controller, cabinet mounted,
    2 UI-PT/NI1000, 1 AO, 2 DO (relays)
    TCI-C24-0 40-110070 Deluxe version, 2 loops, PI-controller, cabinet mounted, 4 UI-PT/NI1000, 2 AO, 2 DO (relays)
    TCI-C15-0 40-110067 1 loop, PI-controller, cabinet mounted,
    2 UI-PT/NI1000, 1 AO, 2 DO (TRIAC)
    TCI-C25-0 40-110068 Deluxe version, 2 loops, PI-controller, cabinet mounted, 4 UI-PT/N1000, 2 AO, 2 DO (TRIAC)



    Documentations:

    Operation Manual - TCI-C

    Install Sheet- TCI-C
