Vector Controls

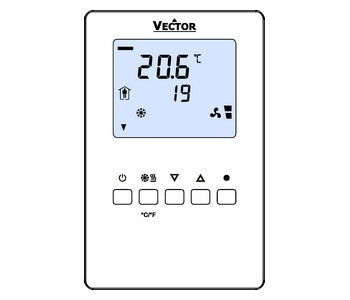

TCI-W13 / W23-U V2 NEW DESIGN: Compact universal single or dual loop PI-controllers for wall mounting with 1 relays, 2 analog outputs and 2 inputs

TCI-W13 / W23-U V2 NEW DESIGN: Compact universal single or dual loop PI-controllers for wall mounting with 1 relays, 2 analog outputs and 2 inputs

TCI-W13-U V2

Low stock: 5 left

RM738.00
RM738.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

The TCI-W is a universal single or dual loop controller with PI- and binary sequences for wall mounting.

Applications

  • Fan coil units
  • Heat exchangers
  • Zoning
  • VAV
  • Air handlers
  • Fan, pump control
  • Humidifiers / Dehumidifiers
  • Ventilation
  • Radiant heating / cooling
  • Pressurization

Features Specifications:

  • Universal PID and/or binary control for any analog input/output signal and range
  • Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation
  • Differential, averaging, min. and max. functions
  • Cascading of control loops (-W23)
  • Alarm monitoring of low and high limits on all inputs
  • Programmable reaction in case of alarm
  • Feedback function for inputs and set points
  • Functions for dehumidifying, set point shift, cascade control
  • Password protected programmable user and control parameters

Deluxe version

  • Power cap protected real-time clock with 48hr power backup
  • 7-day programmable schedules, with options including change of set points and direct position of manual outputs
  • Blue backlight



Item name
 Item code Description
TCI-W13-U V2 40-100267 1 loop, PI-controller, wall flush mounted,
1 UI, 2 AO, 1 DO (relay)
TCI-W13-U-H V2 40-100268 1 loop, PI-controller, wall flush mounted,
int. TI, 1 UI, 2 AO, 1 DO (relay),
int. humidity sensor 3% accuracy
TCI-W23-U V2 40-100271 Deluxe version, 2 loops, PI-controller, wall flush mounted, int. TI, 1 UI, 1 TI, 2 AO, 1 DO (relay)
TCI-W23-U-H V2 40-100272 Deluxe version, 2 loops, PI-controller, wall flush mounted, int. TI, 1 UI, 1 TI, 2 AO, 1 DO (relay)
int. humidity sensor 3% accuracy



Documentations:

Operation Manual - TCI-Wx3-U V2

Installation sheet - TCI-W-U-H
