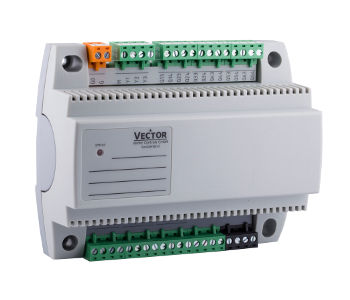

TCX2-24273 Dual loop controller (X2 OS) ideal for zoning and general applications. 230VAC and 24V versions available

The TCX2 is a programmable electronic universal controller with communication capabilities. Each control loop may use 2 PI sequences and 6 binary stages. The TCX2 comes with a built in RS485 communication interface that allows peer to peer communication with an operation terminal.

Communication plug-ins allow for integration of the controller into a network. Currently available are plug-ins for BACnet and MODBUS. There is also a Wi-Fi and Ethernet communication option available which supports Modbus TCP and BACnet IP. An embedded webserver provides a web interface to access the controller in order to change the connection settings and to operate the controller.

Flexible application configuration is made with a parameter-setting routine using the standard operation terminal.

Complete parameter sets may be copied by use of an accessory called AEC-PM1 or exchanged with a PC using an RS485-USB converter, Wi-Fi or Ethernet communication and the EasySet program.

Applications

• Fan coil units
• VAV units
• Fan, pump control
• Underfloor fans
• Ventilation
• Cooling ceilings
• Radiant heating
• Chilled beams

Type Overview (see ordering for details)

Features Specifications:

• Models for 24 VAC or 230 VAC power supply
• 2 universal configurable control loops
• Universal PI and/or binary control for any input/output
• Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation, occupancy control
• Economizer function
• Differential, averaging, min. and max. functions
• Light switching function
• 8 free assignable alarm or interlock conditions
• RS485 bus communication with remote operation terminal OPA2-VC
• BACnet MS/TP  or slave MODBUS communication over RS485 RTU or ASCII
• BACnet IP or Modbus TCP communication over Wi-Fi or Ethernet (Wi-Fi or Ethernet interface required)
• BACnet B-ASC device profile
• Webserver that supports TCX2 operation trough browser or mobile devices (Wi-Fi or Ethernet interface required)
• Peer to peer communication to optional X2 operation terminal OPxx-VC
• 2 selectable analog inputs (VDC) and 5 passive inputs (NTC)
• 3 analog outputs (VDC) and 5 relays with each a normally open contact
• 2 TRIAC outputs fixed to 24 VAC, switching to GND
• Webserver that supports TCX2 operation trough browser or mobile devices (Ethernet or Wi-Fi interface required)
• Password protected programmable user and control parameters
• Clone parameter set with plug-in memory AEC-PM1 - easily transport application parameters to multiple controllers
• Exchange data with PC using the EasySet tool
