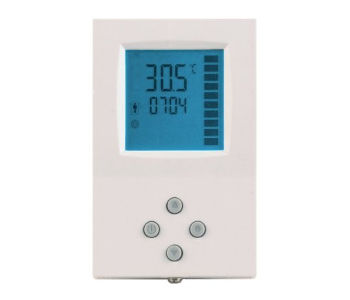

TCY-BH-U Humidistat wall mounted, binary humidifying or dehumidifying with optional fan support
TCY-BH-U Humidistat wall mounted, binary humidifying or dehumidifying with optional fan support
Low stock: 5 left
Regular price
RM678.00
Regular price
Sale price
RM678.00
Unit price
/
per
The TCY-BH is a stand-alone electronic binary humidity stat for wall mounting. It features one internal humidity sensor, one external NTC temperture sensor input and two binary outputs (relays).
A detailed parameterization is possible with the use of a simple configuration routine. The TCY-BH can be configured using the standard operation terminal. No special tools or software is required.
Applications
- Humidifiers:
ON/OFF type humidifiers
ON/OFF type humidifiers with single speed fan support - Dehumidifiers:
ON/OFF type dehumidifiers
ON/OFF type dehumidifiers with single speed fan support - Combination humidifiers and dehumidifiers without fan support
Features Specifications:
- Control for binary humidifiers and dehumidifiers with or without fan support
- Low power energy consumption
- Relay switching for outputs each up to 300 W
- Cost saving option with Economy functionality and set point limitations
- External sensor input for set point set back based on outdoor temperature
- Password protected programmable user and control parameters
- set point range limitation
- access control for set points and mode change
- access control for clock and time programs
- select your display contents
- selectable behavior after return from power failure - Temperature display of external input in Celsius or Fahrenheit
Deluxe version
- Clock and time schedule function
- Blue blacklight for LCD
Item name | Item code | Power supply | Description |
TCY-BH-U | 40-100055 | 24 VAC/DC | Binary controller 1 internal humidity input 1 external temperature input (for set point shift) 1 DO (relay) for humidifier or dehumidifier 1 DO (relay) for fan (optional) |
TCY-BH-U-D | 40-100056 |
