Vector Controls

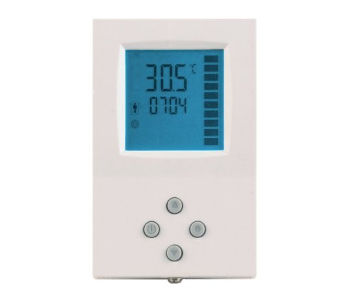

TCY-FT-U Thermostat for 3-point floating actuators

TCY-FT-U Thermostat for 3-point floating actuators

SKU:TCY-FT2-U

Low stock: 5 left

Regular price RM794.00
Regular price Sale price RM794.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

The TCY-FT is a stand-alone electronic universal controller with one  temperature control loop for wall mounting. It may use up to two PI sequences. The TCY-FT features one internal NTC temperature sensor, up to two external sensor inputs and up to four binary outputs. The configuration has been reduced to a minimum to allow for simple and off-the-shelve usage.

For more advanced features and current inputs and outputs the TCI product range is recommended.

The TCY-FT can be configured using the standard operation terminal. No special tool or software is required.

Applications

  • Various temperature control applications
  • Water-only systems: Radiator, floor heating or chilled ceilings
  • Individual room control for offices, residential, hotel rooms, meeting rooms, etc.

Features Specifications:

  • Temperature PI control for HVAC systems
  • Up to two 3-point outputs for 24 VAC actuators
  • One internal temperature sensor and up to two external sensor inputs
  • Multiple remote control functions on external input
  • Password protected programmable user and control parameters
  • Blue backlight



Item name Item code Function Description
TCY-FT2-U 40-100068 2-pipe system PI-controller, wall flush mounted internal and external temperature input 2 DO = 1 floating out
TCY-FT4-U 40-100072 4-pipe system PI-controller, wall flush mounted internal and external temperature input 4 DO = 2 floating out
