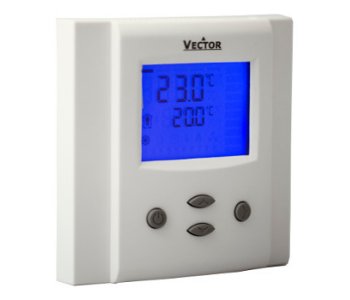

TCY-FT Thermostat for 3-point floating actuators

The TCY-FT is a stand-alone electronic universal controller with one  temperature control loop for wall mounting. It may use up to two PI sequences. The TCY-FT features one internal NTC temperature sensor, up to two external sensor inputs and up to four binary outputs. The configuration has been reduced to a minimum to allow for simple and off-the-shelve usage.

For more advanced features and current inputs and outputs the TCI product range is recommended.

The TCY-FT can be configured using the standard operation terminal. No special tool or software is required.

Applications

• Various temperature control applications
• Water-only systems: Radiator, floor heating or chilled ceilings
• Individual room control for offices, residential, hotel rooms, meeting rooms, etc.

Features Specifications:

• Temperature PI control for HVAC systems
• Up to two 3-point outputs for 24 VAC actuators
• One internal temperature sensor and up to two external sensor inputs
• Multiple remote control functions on external input
• Password protected programmable user and control parameters
• Blue backlight

Power supply 24 VAC
