Vector Controls

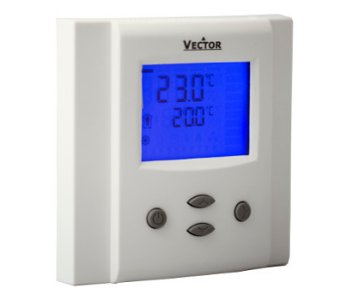

TLC3-BCR-U-230 Thermostat, 2-pipe for three state valve, 4-pipe for 2 on/off valves

TLC3-BCR-U-230 Thermostat, 2-pipe for three state valve, 4-pipe for 2 on/off valves

SKU:TLC3-BCR-U-230

Low stock: 5 left

Regular price RM514.00
Regular price Sale price RM514.00
Sold out
Shipping calculated at checkout.

Item Name (Item Code)

Thermostat, 2-pipe for three state valve, 4-pipe for 2 on/off valves

The thermostat has one independent temperature control loop with one heating and one cooling sequence. One internal temperature sensor, one external temperature input, one auxiliary input for heat – cool changeover or high/low limit.

Flexible application configuration is made with a parameter-setting routine using the standard operation terminal.

Applications

  • Radiant heating / radiant cooling
  • Small air handlers
  • Constant air volume systems
  • Frost protection
  • General temperature control

Features Specifications:

  • Low power energy consumption: < 1 W per unit
  • Relays switching for outputs each up to 300 W
  • Temperature control for 2 or 4-pipe heating or cooling systems
  • Optional external temperature input
  • New feature: high temperature range of external input up to 150 °C (302 °F)
  • Choose between one 3-point actuator and two binary heating/cooling stages
  • Reversing valve options
  • New with V3.1 dual stage option
  • Cost saving option with economy functionality and set point limitations
  • Multiple auxiliary functions: heat-cool auto changeover, automatic enable, high or low limits
  • Password protected programmable user and control parameters

Deluxe version

  • Power cap protected real-time clock with 48 h power backup
  • Time schedule events, with many options
  • Display with blue backlight
  • Infrared remote controller option: with special features for boost and delayed switching on or off
Item name
 Item code  Power supply  Description
 TLC3-BCR-U-230  40-100160   230 VAC/DC  Standard binary controller with 1 RT int., 2 RT ext., 2 DO (relay)
 binary valve control
 TLC3-BCR-U-D-230  40-100161   230 VAC/DC  Deluxe binary controller with 1 RT int., 2 RT ext., 2 DO (relay)
 binary valve control
