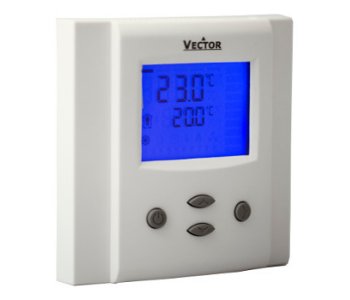

TLC3-FCR-M Fan coil PI-controller, 2-/4-pipe with analog outputs

The TLC3-FCR-M is a stand-alone electronic fan coil controller with one control loop option and one PI heating and cooling sequence.

The TLC3-FCR-M2 is designed for 2-pipe modulating fan coil systems and features one NTC temperature sensor input, one external passive input for temperature or open contact, three binary outputs (relays) and one analog output (0-10 VDC).

The TLC3-FCR-M4 is designed for 4-pipe modulating fan coil systems and features one NTC temperature sensor input, three binary outputs (relays) and two analog outputs (0-10 VDC) for heating and cooling.

A detailed parameterization is possible with the use of a simple configuration routine. The TLC3-FCR-M can be configured using the standard operation terminal. No special tools or software is required.

Applications

• Air only systems: constant or variable air volume systems with three stage fans for single or dual duct systems
• Air/water systems: fan coil units for 2-pipe or 4-pipe systems, radiator control, chilled ceiling
• Simple individual room control for hotel rooms, meeting rooms, etc.
• PID-control of up to two modulating valves for heating and cooling

Features Specifications:

• Proven PID controls algorithm reduces room temperature fluctuations and energy consumption
• Low power energy consumption: < 1W per unit
• Temperature control for 2-pipe and 4-pipe fan coil systems
• Automatic fan control for three stage fans
• Cost saving option with economy functionality and set point limitations
• Control for modulating heating, cooling and fan only operation modes
• Password protected programmable user and control parameters
  • Set point range limitation
  • Access control for set points, fan speeds and mode change
  • Access control for heat/cool change and time programs
  • Select your display contents
  • Selectable behavior after return from power failure
• Temperature display in Celsius or Fahrenheit

Deluxe version

• Clock and time schedule functions with power failure protection
• Blue backlight for LCD
• Infrared remote controller option: with special features for boost and delayed switching on or off
