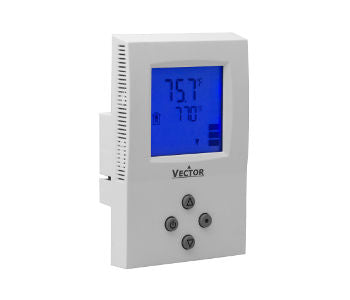

TLC3-FCR-2R / 2T-U Fan coil controller, 2-pipe floating, 4-pipe on/off
TLC3-FCR-2R / 2T-U Fan coil controller, 2-pipe floating, 4-pipe on/off
Low stock: 5 left
Regular price
RM500.00
Regular price
Sale price
RM500.00
Unit price
/
per
Fan coil controller, 2-pipe floating, 4-pipe on/off
The TLC3-FCR-2R/2T-U is a stand-alone electronic fan coil controller with one control loop. The controller includes 1 NTC temperature sensor, five binary outputs. Three outputs control a fan with low, medium and high fan speeds. Two binary outputs may be used to control either two spring return or thermal valves or one three point floating valve. A detailed parameterization is possible with the use of a simple configuration routine.
The TLC3-FCR-2-U can be configured using the standard operation terminal. No special tools or software is required.
Applications
- Air only systems: constant air volume systems with three stage fans for single or dual duct systems
- Air/water systems: fan coil units for 2-pipe or 4-pipe systems, radiator control, chilled ceiling
- Simple individual room control for hotel rooms, meeting rooms, etc.
- PWM or ON-OFF control of two spring return valve or 3-point ON-OFF or floating control of one 3-point valve
Features Specifications:
- The PWM and 3-point floating control option reduces room temperature fluctuations and energy consumption
- Low power energy consumption: < 1W per unit
- Temperature control for 2- and 4-pipe fan coil systems
- Automatic fan control for three stage fans
- Cost saving option with economy functionality and set point limitations
- Control for single stage heating, cooling and fan only operation modes
- Password protected programmable user and control parameters
- Set point range limitation
- Access control for set points, fan speeds and mode change
- Access control for heat/cool change and time programs
- Select your display contents
- Selectable behavior after return from power failure
- Temperature display in Celsius or Fahrenheit
Deluxe version
- Clock and time schedule functions with power failure protection
- Blue backlight for LCD
- Infrared remote controller option: with special features for boost and delayed switching on or off
Item name | Item code | Power supply | Description |
TLC3-FCR-2R-U-24 | 40-100140 | 24 VAC/DC | Fan coil controller with 1 TI int. or ext., 3 DO (relay) fan control, 2 DO (relay) binary valve control |
TLC3-FCR-2R-U-D-24 | 40-100145 | ||
TLC3-FCR-2T-U-230 | 40-100120 | 230 VAC/DC | Fan coil controller with 1 TI int. or ext., 3 DO (relay) fan control, 2 DO (TRIAC) binary valve control |
TLC3-FCR-2T-U-D-230 | 40-100121 |
