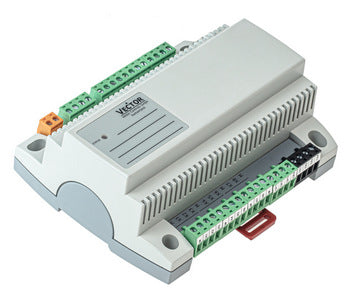

TCX2-40863 Quad loop universal controller (X2 OS) cabinet mounted
TCX2-40863 Quad loop universal controller (X2 OS) cabinet mounted
Low stock: 5 left
The TCX2 is a programmable universal controller with communication capabilities. Each control loop may use 2 PI sequences and 6 binary stages. The TCX2 comes with a built in RS485 communication interface that allows peer to peer communication with an operation terminal such as OPA2-(2TH)-VC.
Communication plug-in allow for integration of the controller into a network. These modules are described in their own manual. Currently available are plug-ins for BACnet and MODBUS. There is also a Wi-Fi and Ethernet communication option available which supports Modbus TCP and BACnet IP. An embedded webserver provides a web interface to access the controller in order to change the connection settings and to operate the controller.
Flexible application configuration is made with a parameter-setting routine using the standard operation terminal.
Complete parameter sets may be copied by use of an accessory called AEC-PM1 or exchanged with a PC using an RS485-USB converter, Wi-Fi or Ethernet communication and the EasySet program.
Applications
- Refrigeration / air conditioning units
- Air handling units
- Chillers
- Humidifying / dehumidifying
- Pressure / pump systems
- and many more…
Type Overview (see ordering for details)
Features Specifications:
- 4 universally configurable control loops
- Functions for dehumidifying, set point shift and cascade control
- Multiple auxiliary functions: heat-cool auto changeover, automatic enable, set point compensation
- Free heating and cooling with economizer function based on enthalpy or temperature
- Differential, averaging, min and max functions, enthalpy and dew point calculations
- Transmitter function for inputs and set points
- BACnet MS/TP or slave MODBUS communication over RS485 RTU or ASCII
- BACnet IP or Modbus TCP communication over Wi-Fi or Ethernet (Wi-Fi or Ethernet interface required)
- Webserver that supports TCX2 operation trough browser or mobile devices (Wi-Fi or Ethernet interface required)
- Peer to peer communication to optional X2 operation terminal OPxx-VC
- 8 selectable universal inputs (VDC, mA, NTC)
- 3 universal analog outputs (VDC, mA) and 6 relays with each a normally open contact
- 8 freely assigned alarm conditions, selectable state of outputs on alarm condition
- Power Cap protected real-time clock with 48hr power backup
- 7-day programmable schedules, with options including change of set points and direct position of manual outputs
- Password protected programmable user and control parameters
- Clone parameter set with plug-in memory AEC-PM1 - easily transport application parameters to multiple controllers
- Exchange data with PC using the EasySet tool
Item name | Item code | Functions | Description |
TCX2-40863
|
40-110032 | Controller standalone | PI-controller cabinet mounted with communication 4 controll loops 8 universal inputs 6 relays 3 analog outputs |
TCX2-40863-OP | 40-110036 | Controller with integrated operation terminal | |
TCX2-40863-MOD | 40-110077 | Controller with Modbus RTU or ASCII communication | |
TCX2-40863-OP-MOD | 40-110078 | Controller with integrated operation terminal and Modbus RTU or ASCII communication | |
TCX2-40863-BAC | 40-110079 | Controller with BACnet MS/TP communication | |
TCX2-40863-OP-BAC | 40-110080 | Controller with integrated operation terminal and BACnet MS/TP communication | |
TCX2-40863-WEM | 40-110117 | Controller with Modbus TCP over Wi-Fi communication | |
TCX2-40863-OP-WEM | 40-110133 | Controller with integrated operation terminal and Modbus TCP over Wi-Fi communication | |
TCX2-40863-ETM | 40-110118 | Controller with Modbus TCP over Ethernet communication | |
TCX2-40863-OP-ETM | 40-110134 | Controller with integrated operation terminal and Modbus TCP over Ethernet communication | |
TCX2-40863-WEB | 40-110126 | Controller with BACnet IP over Wi-Fi communication | |
TCX2-40863-OP-WEB | 40-110135 | Controller with integrated operation terminal and BACnet IP over Wi-Fi communication | |
TCX2-40863-ETB | 40-110127 | Controllerwith BACnet IP over Ethernet communication | |
TCX2-40863-OP-ETB | 40-110136 | Controller with integrated operation terminal and BACnet IP over Ethernet communication |
