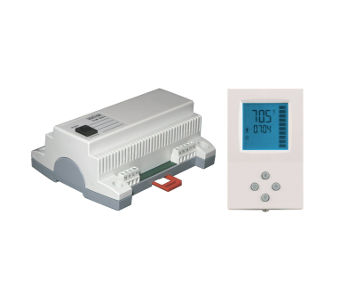

TLR-D5F Fan coil unit controller with base unit and operation terminal for 3 speed fans and 1 3-point floating valve

The TLR-D5F is a stand-alone electronic single loop controller with a fan control option and one PI heating or cooling sequence. The operation terminal is called OPU-D5F. The controller includes 1 NTC room temperature sensor and 3 relays outputs to control fan speeds and 2 TRIAC outputs for floating control. A detailed adaptation to local conditions is possible with the use of a simple configuration routine. The TLR-D5F can be configured using the standard operation terminal. No special tools or software is required.

 The TLR-D5F has been specifically developed to switch larger fans with switching power of up to 10 (6) A.

Applications

Air/Water Systems: fan coil units for 2-pipe systems with one valve with options of

• External temperature sensor or changeover sensor
• Window contact, motion detector or changeover switch

Features Specifications:

• PI temperature control for 2-pipe fan coil systems with floating valve actuator
• Relays switching up to 10(6) A
• 2 TRIAC for floating control outputs
• Automatic fan control for three stage fans
• Control for heating, cooling and fan only operation
• Cost saving option with economy functionality and set point limitation
• For large rooms: Master – slave option, one terminal may drive up to 8 base units in parallel
• External sensor or open contact for remote control, external heat – cool change or auto-changeover on supply or outdoor temperature with selectable activation limits one terminal may control up to 8 base units in parallel mode
• Password protected programmable user and control parameters
• Temperature display in Celsius or Fahrenheit

Deluxe version:

• Clock and time schedule functions with special options for schools and universities
• Clock keeps running for 48 h in case of power failure
• Display with blue backlight
• Infrared remote controller option: with special features for boost and delayed switching on or off
