Siemens

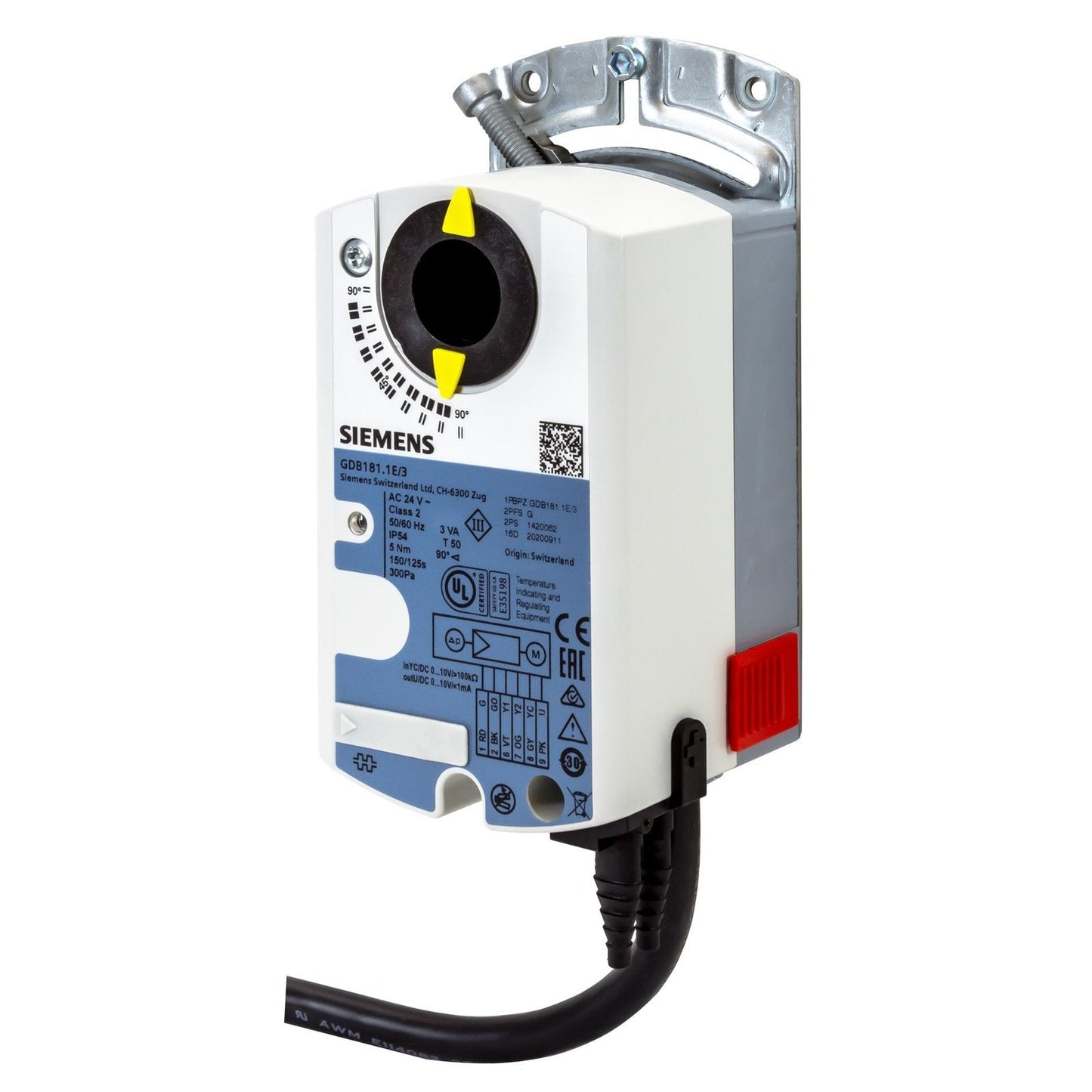

VAV compact controller, AC 24 V, DC 0...10 V, 10 Nm, 150 s, 300 Pa
VAV compact controller, AC 24 V, DC 0...10 V, 10 Nm, 150 s, 300 Pa
SKU:GDB181.1E/3/10nm
Low stock: 2 left
Regular price
RM1,736.00
Regular price
Sale price
RM1,736.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Compact controller for plants with variable or constant air volume flow
- Integrated, highly precise differential pressure sensor, damper actuator and digitally configurable air volume controller
- Nominal torque 10 Nm, air damper rotation angle mechanically adjustable between 0 and 90°
- Forced close-off function in DC 2...10 V operation
- Optionally configurable as VAV compact controller or as damper actuator/differential pressure sensor unit
- Prewired with a 0.9 m connecting cable
Technical Specifications:
| Angular rotation |
90°
|
|
Power consumption
|
3 VA, 2.5 W
|
|
Positioning time
|
150 s
|
|
Cable length
|
0.9 m
|
|
Positioning signal
|
DC 0...10 V, DC 2…10 V, 3-position
|
|
Degree of protection
|
IP54
|
|
Ambient temperature, operation
|
0…50 °C
|
|
Medium temperature
|
0…50 °C
|
|
Ambient humidity, operation
|
95 % r.h.
|
|
Dimensions (W x H x D)
|
71 x 158 x 61 mm
|
|
Operating voltage
|
AC 24 V
|
|
Position feedback
|
DC 0…10 V
|
|
Auxiliary switch
|
0
|
|
Air damper area
|
0.8 m²
|
|
Torque
|
10 Nm
|
